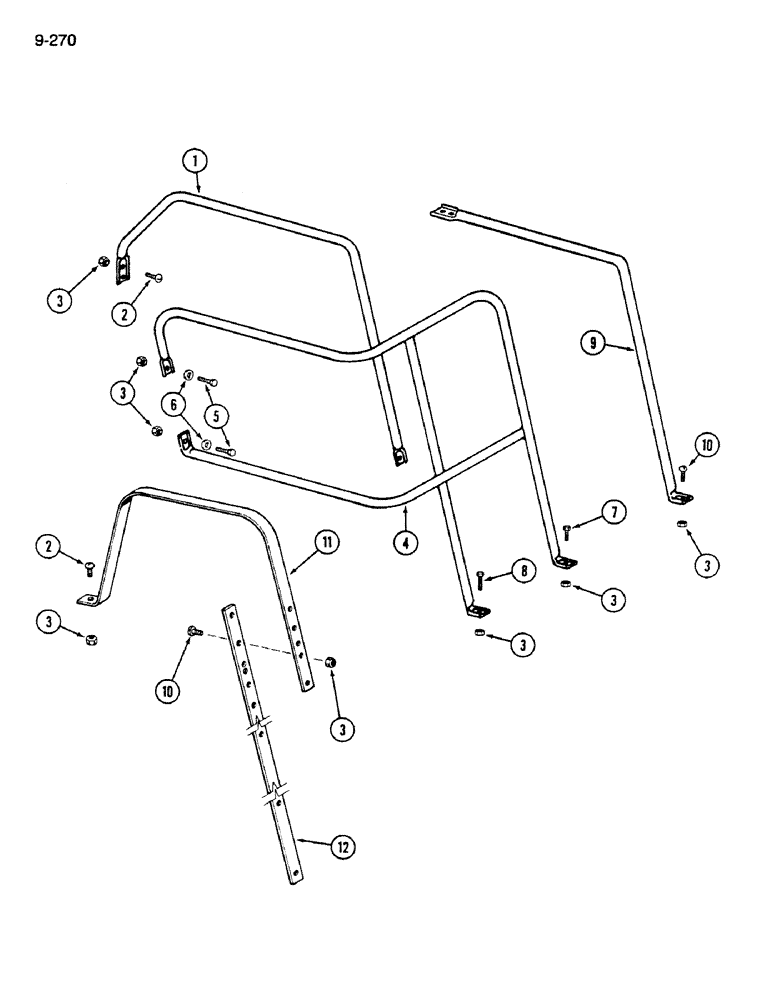

Запчасти Case IH 1620 (9-270) - SERVICE DECK HAND RAILS (12) - CHASSIS

1

195278C2

RAIL

- grain tank, Serial Range: -JJC0032001

1шт.

2

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted, 5/16 NC x 1 inch

3шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

11шт.

4

195052C1

RAIL

- deck, left

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

2шт.

6

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

2шт.

7

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

8

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex, 5/16 NC x 1-1/4 inch

1шт.

9

1317866C1

RAIL

- deck, right

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

3шт.

11

1338059C1

RAIL ASSY.

RAIL - deck, grain tank JJC0032001 to

1шт.

12

1338058C2

BRACKET

RAIL - support JJC0032001 to

1шт.
