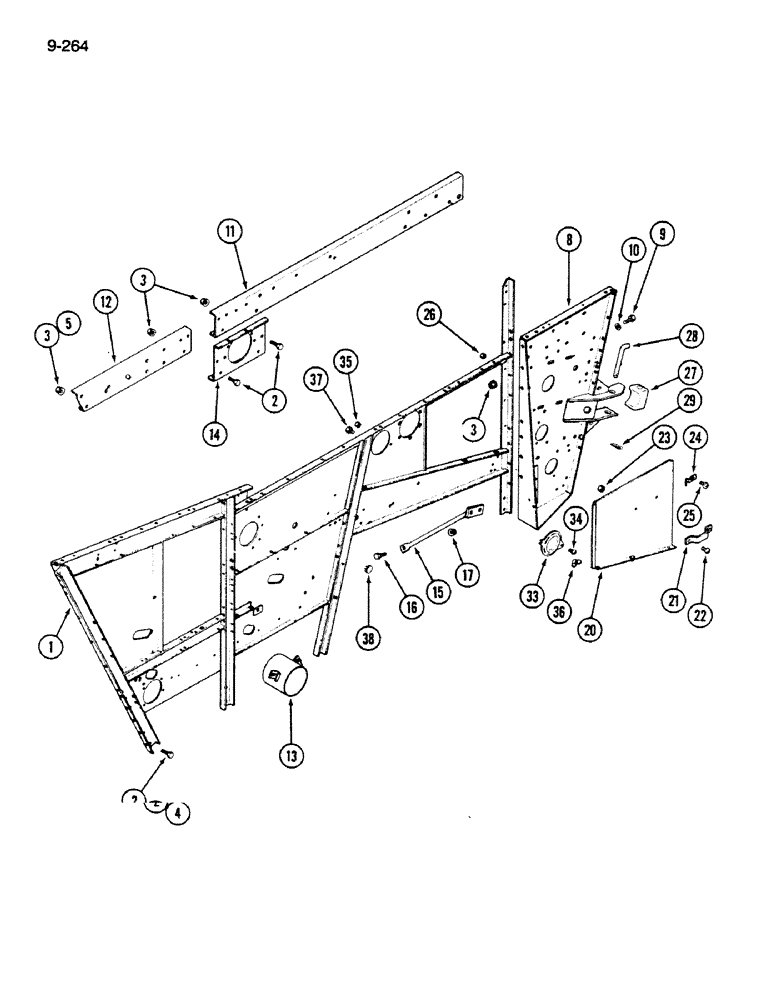

Запчасти Case IH 1620 (9-264) - SEPARATOR RIGHT SIDE AND SUPPORTS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
194799C2
SIDE ASSY.
SIDE - separator, right
1шт.
2
454998
BOLT,Hex, 1/2" - 13 x 1", Gr 8
- hex, 1/2 NC x 1 inch
17шт.
3
131-930
FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5
- hex flange lock, 1/2 inch NC
17шт.
4
20739R1
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8
- hex, 5/8 NC x 1-1/4 inch
9шт.
5
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
- hex flange lock, 5/8 inch NC
15шт.
8
194341C5
POST
SUPPORT - post, front right
1шт.
9
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
6шт.
11
185252C1
SUPPORT
CHANNEL - support, front sill
1шт.
12
185255C1
CHANNEL
- support, rear sill
1шт.
13
185253C1
TUBE,180 mm ID
- grain
1шт.
14
185254C1
SUPPORT
CHANNEL - support, middle sill
1шт.
15
181306C1
BRACE
- post, diagonal
1шт.
17
131-1153
LOCK NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
3шт.
20
1303100C91
DOOR
- front, right (With decal)
1шт.
21
160638C1
HANDLE
- door
1шт.
22
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
- slotted truss head, 5/16 NC x 1/2 inch
2шт.
23
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
2шт.
24
167800C1
CLIP
CLIP - latch, door
4шт.
25
159927
SCREW,Cross Pan Hd, #10 - 24 x 1/2"
- pan head slotted, No. 10 x 1/2 inch
4шт.
26
174097C1
FLANGE NUT,Flg, USR, #10-24
- hex flange lock, No. 10
4шт.
27
185078C1
BLOCK
RETAINER - block, side
1шт.
28
192533C2
ROD
PIN - pivot, retainer
1шт.
29
486830R1
COTTER PIN
PIN - quick, lock
1шт.
33
188315C1
DOOR
- side, separator right
1шт.
34
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
- slotted truss head, 1/4 NC x 1/2 inch
1шт.
35
26110R1
LOCK NUT,1/4"-20, GC
NUT - hex lock, 1/4 inch NC
1шт.
36
126177
WING NUT
NUT - wing, 1/4 inch NC
1шт.
37
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
1шт.
38
353-414
PLUG,Dome, 1.375" Hole, Nylon
1шт.
Выбрано товаров: 31
