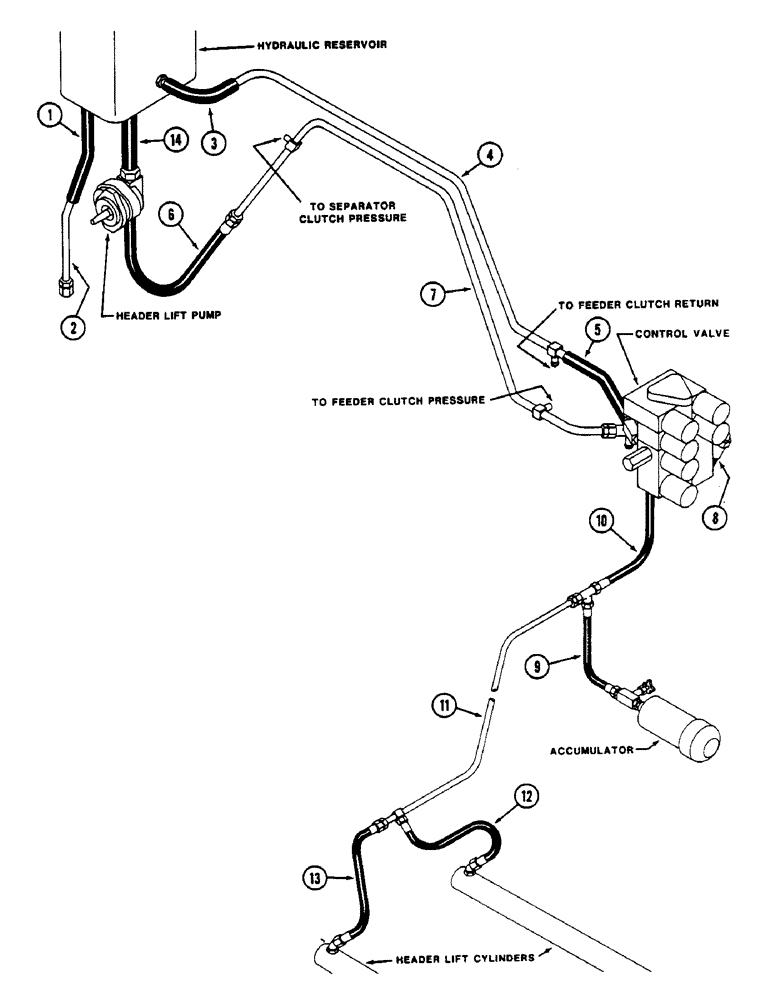

Запчасти Case IH 1620 (1-012) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Reservoir Drain Hose, Pg 8-5

1шт.

2

Reservoir Drain Hose, Pg 8-5

1шт.

3

Header Lift Return, Rear Hose, Pg 8-15

1шт.

4

Header Lift Return Tube, Pg 8-15

1шт.

5

Header Lift Return, Front Hose, Pg 8-15

1шт.

6

Header Lift Pressure, Rear Hose, Pg 8-13

1шт.

7

Header Lift Pressure Tube, Pg 8-13

1шт.

8

Header Lift Pressure, Front Hose, Pg 8-13

1шт.

9

Accumulator Hose, Pg 8-71

1шт.

10

Header Lift Hose, Pg 8-23

1шт.

11

Header Lift Cylinder Tube, Pg 8-23

1шт.

12

Header Lift Cylinder Hose, Pg 8-23

1шт.

13

Header Lift Cylinder Hose, Pg 8-23

1шт.

14

Header Lift Suction Hose, Pg 8-13

1шт.
