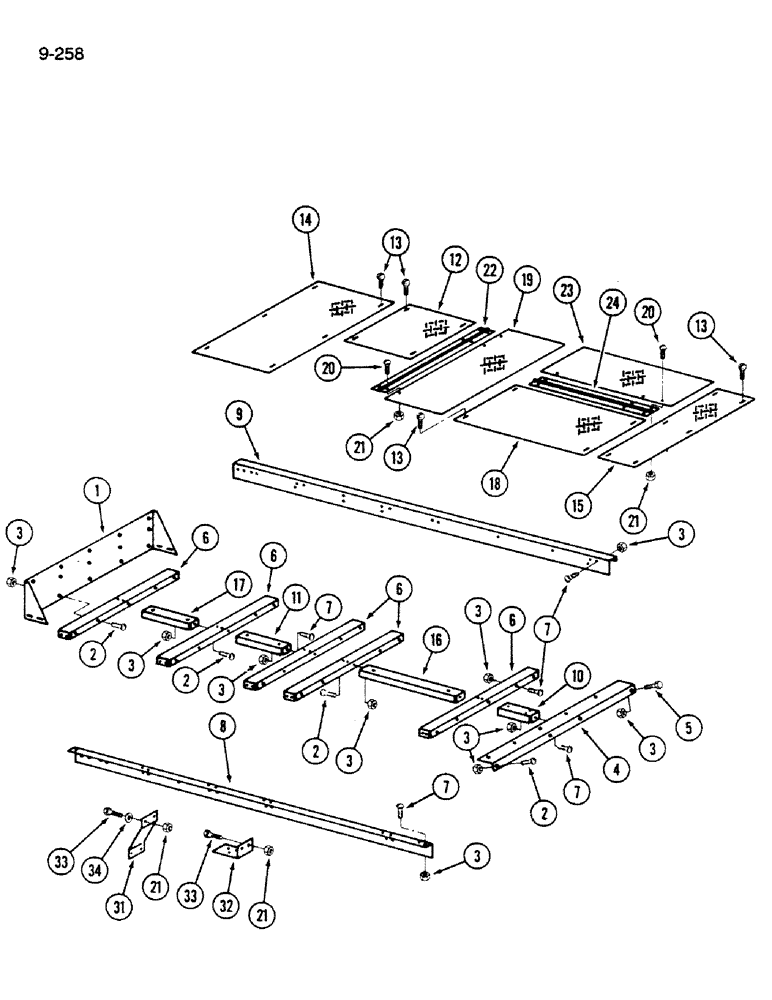

Запчасти Case IH 1620 (9-258) - ENGINE SERVICE DECK (12) - CHASSIS

1

193435C2

SUPPORT

- deck

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

11шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

40шт.

4

183107C3

SUPPORT

- deck, rear

1шт.

5

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

6

192959C4

SUPPORT

CHANNEL - deck

5шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted 5/16 NC x 3/4 inch

28шт.

8

188368C1

ANGLE

- deck, left

1шт.

9

192960C3

SUPPORT

CHANNEL - deck

1шт.

10

194459C1

SUPPORT

CHANNEL- deck

1шт.

11

194461C1

SUPPORT

CHANNEL - deck

1шт.

12

194455C2

PLATE

- compartment

1шт.

13

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

22шт.

14

194456C2

PLATE

- compartment

1шт.

15

192596C3

PLATE

DECK - compartment

1шт.

16

194460C1

SUPPORT

CHANNEL - deck

1шт.

17

188081C1

SUPPORT

CHANNEL - deck

1шт.

18

188096C2

PLATE

SHEET - deck

1шт.

19

186694C2

DOOR

- separator

1шт.

20

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted, 1/4 NC x 1/2 inch

18шт.

21

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

20шт.

22

186695C1

HINGE

- door

1шт.

23

186692C2

DOOR

- separator

1шт.

24

186693C1

HINGE

- door

1шт.

31

187506C1

SUPPORT

- valve

1шт.

Used with feeder and separator clutch valve, 187505C91.

1шт.

32

1301037C1

ANGLE

SUPPORT - valve

1шт.

Listed with feeder and separator clutch valve, 1301171C91.

1шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

34

22859R1

WASHER

- flat, 11/32 x 3/4 x 11/64 inch

2шт.

Used with feeder and separator clutch valve, 187505C91.

1шт.
