Запчасти Case IH 1620 (9-250) - COMPRESSOR CLUTCH ASSEMBLY (10) - CAB & AIR CONDITIONING

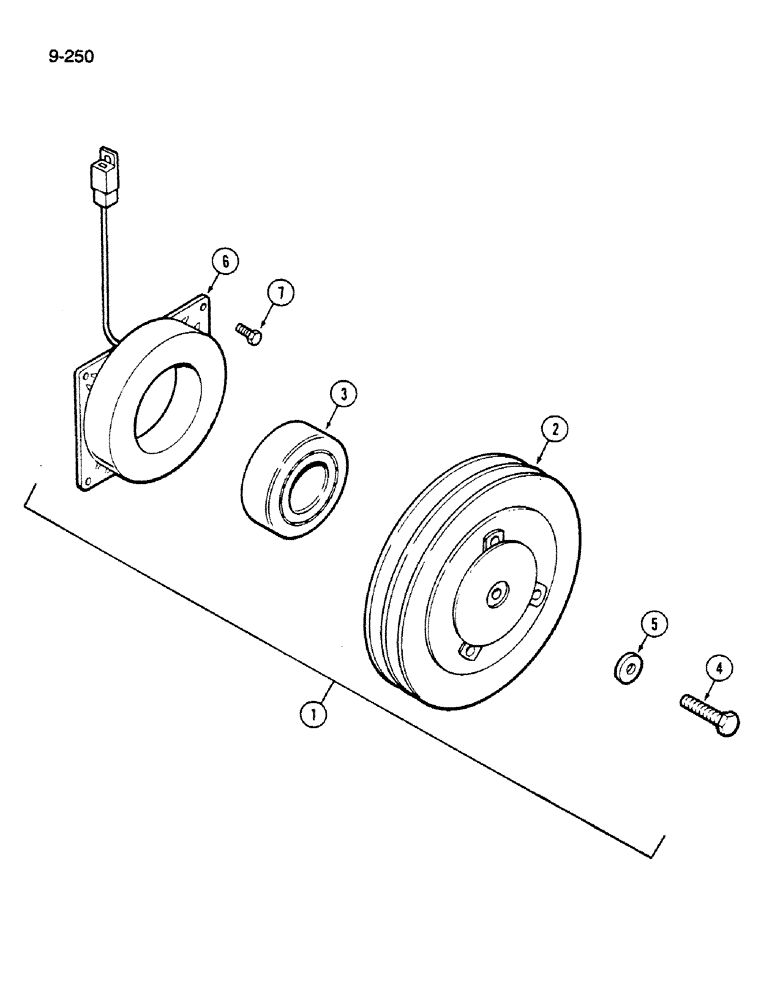

Схема запчастей Case IH 1620 - (9-250) - COMPRESSOR CLUTCH ASSEMBLY (10) - CAB & AIR CONDITIONING
4
3
1
5
6
2
7

Артикул

Название

Примечание

Количество

1

143405C91

PULLEY

CLUTCH ASSEMBLY - compressor, Includes: Ref. 2 - 7

1шт.

2

143406C1

PULLEY ASSY.

PULLEY WITH BEARING - clutch, Includes: Ref. 3

1шт.

3

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING - double row

1шт.

4

28598R1

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

- hex, 5/16-24 NC x 1-1/4 inch

1шт.

5

1283257C1

WASHER

- compressor clutch

1шт.

Do not substitute with any other washer.

1шт.

6

143407C1

COIL ASSY.

COIL - field

1шт.

7

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

4шт.

Выбрано товаров: 8
