Запчасти Case IH 1620 (9-248) - AIR CONDITIONER COMPRESSOR PULLEY, CLUTCH AND BELT (10) - CAB & AIR CONDITIONING

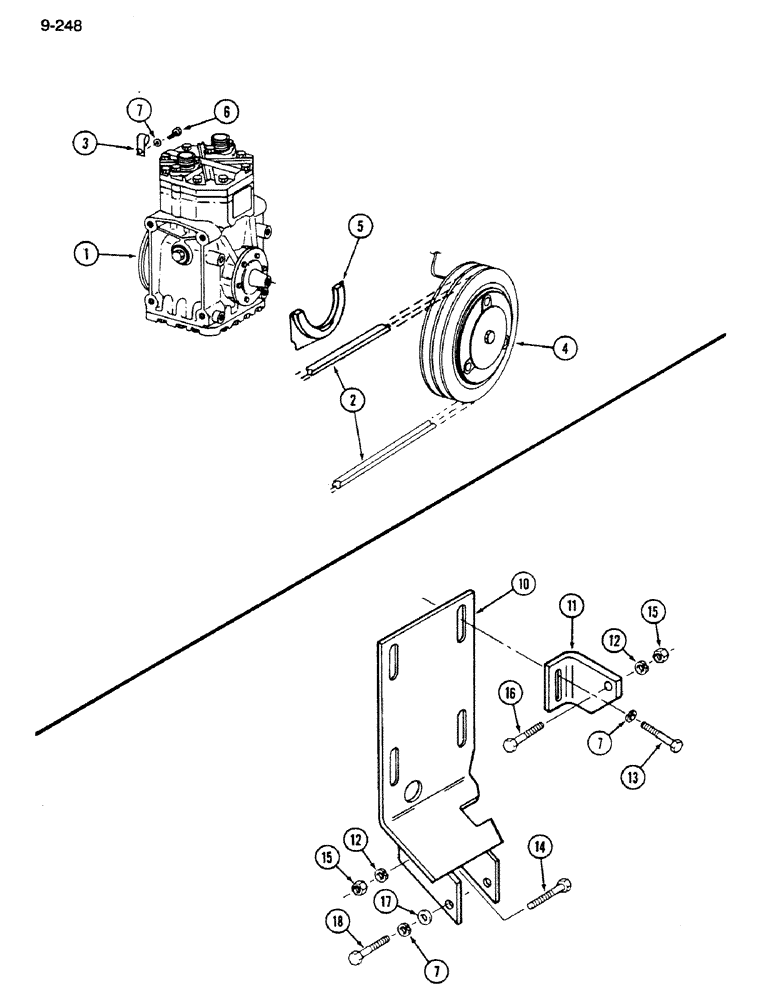

Схема запчастей Case IH 1620 - (9-248) - AIR CONDITIONER COMPRESSOR PULLEY, CLUTCH AND BELT (10) - CAB & AIR CONDITIONING
18
11
16
7
15
14
7
12
12
6
3
13
7
2
15
17
10
1
4
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COMPRESSOR - air conditioner, see Figure 9-252

1шт.

2

280210C2

BELT,53.50" L

V-BELT , Compressor, Drive 53.50" L

1шт.

3

362667R1

CLIP

- wire

1шт.

4

REF

INSTRUCTION

CLUTCH - compressor, see Figure 9-250

1шт.

5

245983C1

AIR CONDITIONER

WICK ASSEMBLY - compressor

1шт.

6

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

10

131388C2

BRACKET

- compressor mounting

1шт.

11

131392C1

SUPPORT

BRACKET - compressor, top, mounting

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Compressor mounting 5/16"

3шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Compressor mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

14

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Compressor mounting

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

Compressor mounting 5/16"-18, G5

3шт.

16

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Compressor mounting Hex, 5/16"-18 x 1 1/4", G5

1шт.

17

25708R1

WASHER

- flat, 11/32 x 11/16 x 3/32 inch, compressor mounting

2шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Compressor mounting Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

Выбрано товаров: 16
