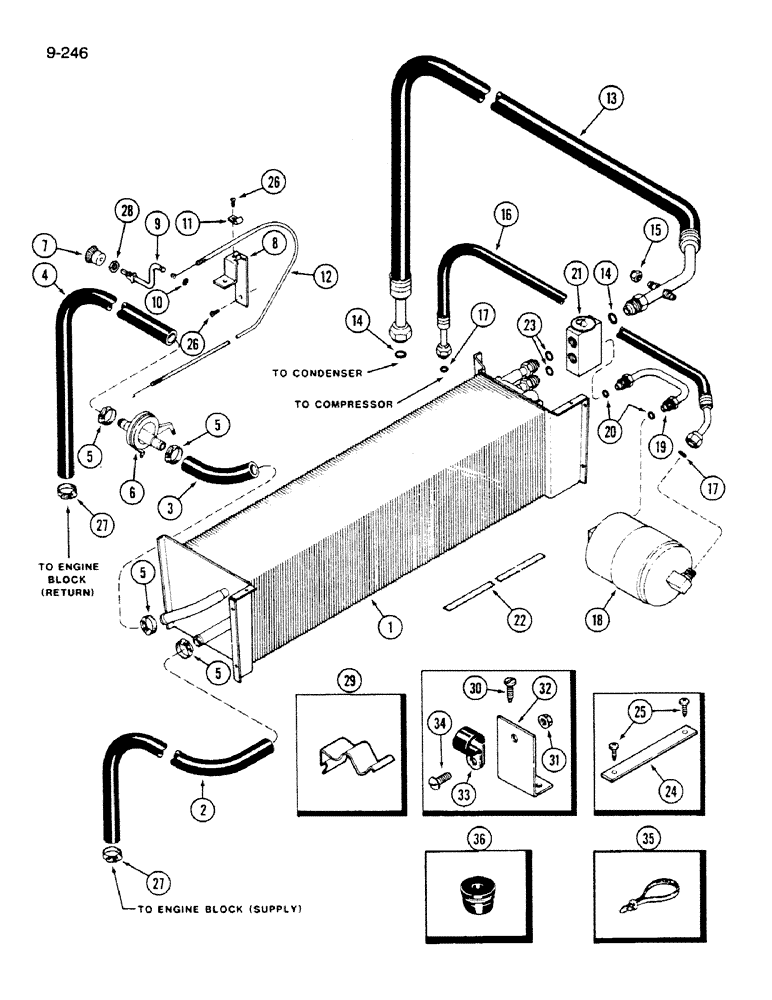

Запчасти Case IH 1620 (9-246) - CAB HEATER AND AIR CONDITIONER (10) - CAB & AIR CONDITIONING

1

REF

INSTRUCTION

EVAPORATOR CORE AND EXPANSION VALVE ASSEMBLY - cab, see Figure 9-238

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (Cut from bulk stock 1255859C1)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve (return) 5 inch (Cut from bulk stock 117724C1)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction (return) 115 inch (Cut from bulk stock 117724C1)d

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , No. 10 #24

4шт.

6

3234102R92

VALVE

- heater control

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1283445C2

BRACKET

SUPPORT - cable, heater valve control

1шт.

9

1281809C1

ARM

- heater control

1шт.

10

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

11

1283334C1

CLIP

- mounting, heater cable

1шт.

12

1276220C3

CABLE

- control, heater valve

1шт.

13

1276164C1

HOSE

ASSEMBLY - evaporator discharge, Includes: Ref. 14 and 15

1шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, Class 5

2шт.

15

118188C1

CAP

- seal

1шт.

16

1276163C2

HOSE

ASSEMBLY - receiver, drier to cab, Includes: Ref. 17

1шт.

17

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - air conditioner, see Figure 9-238

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier, Includes: Ref. 20

1шт.

20

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

21

REF

INSTRUCTION

VALVE - expansion, see Figure 9-238

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch (Order bulk stock 118468C1)

1шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch Class 5

2шт.

24

1321363C2

STRAP

- retaining, hose

4шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

26

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head slotted, No. 10-16 x 3/8 inch

3шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose No. 12 Type F

2шт.

28

109311H

JAM NUT

- 7/16-28, heater control arm

1шт.

29

3233746R1

CLIP

- cable

1шт.

30

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

31

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

1шт.

32

98158C1

BRACKET

- heater valve support

1шт.

33

27291R1

CLAMP

- 1 inch diameter closed

1шт.

34

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

35

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

36

198821C1

GROMMET,3.18mm ID x 41.1mm OD x 26.9mm Thk

- hose hole, 1/8 inch ID

1шт.
