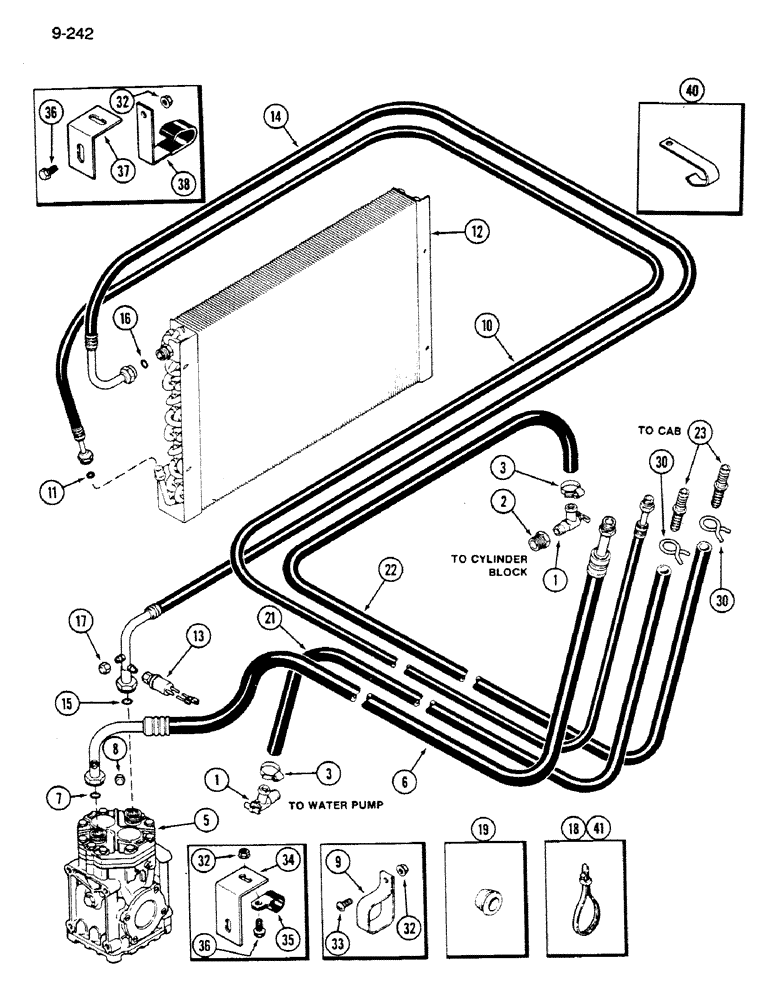

Запчасти Case IH 1620 (9-242) - CHASSIS HEATER AND AIR CONDITIONER (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - heater

2шт.

2

175778H1

ADAPTER

- hex, 1/2 to 3/8 inch

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioner, see Figure 9-252

1шт.

6

1276165C1

HOSE

ASSEMBLY - compressor to cab, 201 inches, Includes: Ref. 7 and 8

1шт.

7

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, Class 5

1шт.

8

118188C1

CAP

- seal

1шт.

9

154695C2

CLAMP

- hose (Heater only)

1шт.

9

1301387C2

CLIP

CLAMP - hose (Heater and air conditioner)

1шт.

10

1276162C3

HOSE

ASSEMBLY - condenser to cab, 240 inches, Includes: Ref. 11

1шт.

11

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

12

REF

INSTRUCTION

COIL - condenser, air conditioner, see Figure 9-244

1шт.

13

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

14

1276161C2

HOSE

ASSEMBLY - compressor to condenser, Includes: Ref. 15 - 17

1шт.

15

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch Class 5

1шт.

16

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/8 x 9/16 inch Class 5

1шт.

17

118188C1

CAP

- seal

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

3шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

4шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- hose, 1 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, red, 265 inch (Cut from bulk stock R5497D)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 265 inch (Cut from bulk 50 ft roll 97252C1)

1шт.

23

1301342C1

FITTING

CONNECTOR - heater hose inlet fitting

2шт.

30

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

33

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

34

194756C2

ANGLE

- clamp mounting front

1шт.

35

28123R1

CLAMP

- 1-1/2 inch coated medium, closed

1шт.

36

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

37

1301560C1

SUPPORT

ANGLE - clamp mounting rear

1шт.

38

1324905C1

CLIP

- air conditioner, Serial Range: hoses-condenser

1шт.

40

395467R2

CLIP

- hose

3шт.

41

702093C1

CABLE TIE

STRAP - hose

1шт.
