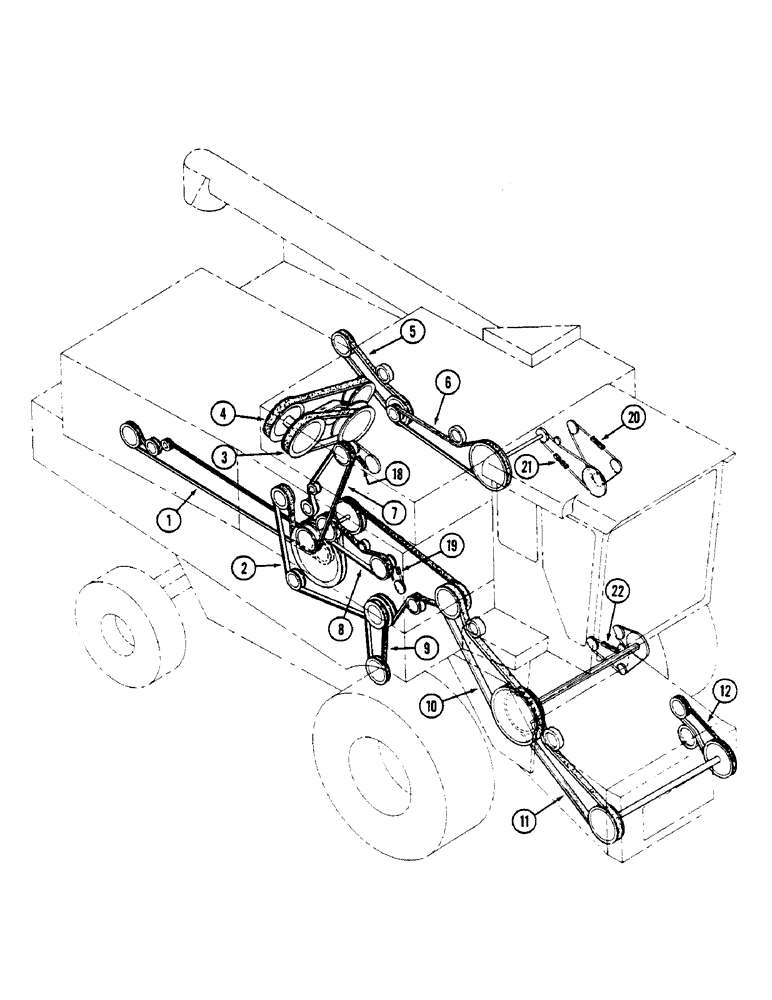

Запчасти Case IH 1620 (1-010) - PICTORIAL INDEX, BELTS, CHAINS (00) - PICTORIAL INDEX

1

Straw Spreader Drive Belt, Pg 9-191

1шт.

2

Right Side Drive Belt (With Straw Chopper Attachment), Pg 9-5

1шт.

2

Right Side Drive Belt (With Straw Chopper Attachment), Pg 9-5

1шт.

Refer to Figure 9-187 for Straw Chopper Attachment Drive Belt

1шт.

3

Rotor Drive Belt, Pg 9-59

1шт.

4

Separator Drive Belt, Pg 9-17

1шт.

5

Header Lift Pump Belt, Pg 8-19

1шт.

6

Grain Tank Unloader Drive Belt, Pg 9-169

1шт.

7

Grain Elevator Belt, Pg 9-143

1шт.

8

Tailings Elevator Belt, Pg 9-155

1шт.

9

Cleaning Fan Drive Belt, Pg 9-63

1шт.

10

Feeder Drive Belt, Pg 9-23, 27

1шт.

11

Feeder Jackshaft Drive Belt, Pg 9-31

1шт.

12

Reel Pump Drive Belt, Pg 9-3

1шт.

18

Distribution Auger Drive Chain, Pg 9-157

1шт.

19

Delivery Auger Chain, Pg 9-145

1шт.

20

Grain Tank Unloader Drive Chain, Pg 9-173

1шт.

21

Grain Tank Unloader Drive Chain, Pg 9-173

1шт.

22

Feeder Reverser Drive Chain, Pg 9-51, 53

1шт.
