Запчасти Case IH 1620 (9-238) - EVAPORATOR-HEATER CORE, AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

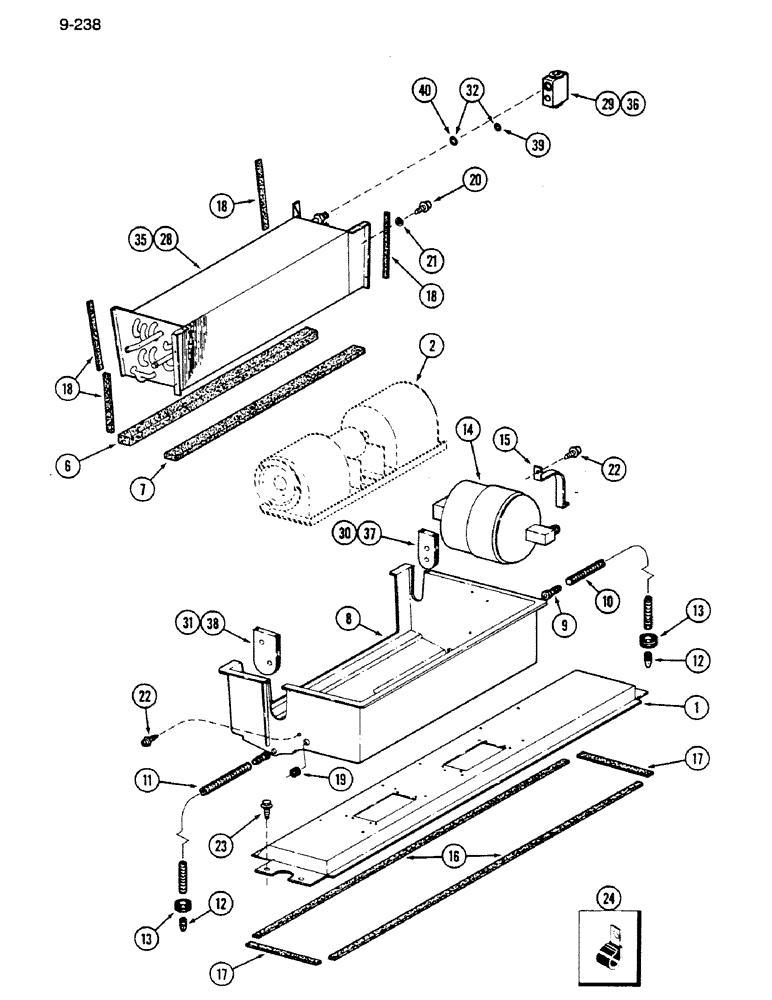

Схема запчастей Case IH 1620 - (9-238) - EVAPORATOR-HEATER CORE, AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING
35
38
18
17
14
12
9
28
2
15
23
18
22
21
18
22
12
31
40
36
11
37
20
19
10
39
17
8
32
29
7
13
24
16
13
6
30
1

Артикул

Название

Примечание

Количество

1

1276238C1

SUPPORT

- mounting, blower box

1шт.

2

REF

INSTRUCTION

BLOWER ASSEMBLY - pressurizer, see Figure 9-240

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - core front (Cut from bulk roll 1974883C1)

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - core rear (Cut from bulk roll 1974883C1)

1шт.

8

135776C2

HOUSING

- core

1шт.

9

1250522C3

FITTING

FITTING - drain, Serial Range: hose-housing

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - condensate left, 90 inch (Cut from bulk stock 198091C1)

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - condensate right, 134 inch (Cut from bulk stock 198091C1)

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

195806C1

GROMMET

- condensate hose, 3/4 inch ID

2шт.

13

195800C1

GROMMET

- condensate hose plug (Without air conditioner)

2шт.

14

143469C2

RESERVOIR

RECEIVER - DRIER - cab

1шт.

15

1250439C1

CLAMP

- receiver - drier

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 50 inch (Cut from bulk stock 187874C1)

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 10 inch (Cut from bulk stock 187874C1)

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - core to housing, 6-1/2 inch (Cut from bulk stock 187874C1)

1шт.

19

83931C1

GROMMET

- blower harness

1шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - No. 10-16 x 1/2

4шт.

21

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - No. 10-16 x 3/4 inch

12шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- hex washer head self-tapping, 1/4-14 x 1 inch

4шт.

24

362126R1

CLIP

- right condensate hose

3шт.

118468C1

TAPE

INSULATION - tape

1шт.

79675C92

HEAT-EXCHANGER

EVAPORATOR ASSEMBLY - heat and air, Includes: Ref. 28 - 32, Serial Range: -JJC0032001

1шт.

28

NSS

NOT SOLD SEPARAT

CORE - evaporator

1шт.

29

118321C1

VALVE

- expansion

1шт.

29

118321C1GV

VALVE

- expansion

1шт.

30

1250463C2

GROMMET

- evaporator tubes (Rubber)

1шт.

31

1250464C2

GROMMET

- heater tubes (Rubber)

1шт.

32

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch Class 5

2шт.

1974632C1

EVAPORATOR

ASSEMBLY - heat and air, Includes: Ref. 35 - 40 JJC0032001 to

1шт.

35

NSS

NOT SOLD SEPARAT

CORE - evaporator

1шт.

36

98370C2

VALVE

- expansion

1шт.

37

1250463C2

GROMMET

- evaporator tubes (Rubber)

1шт.

38

1250464C2

GROMMET

- heater tubes (Rubber)

1шт.

39

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch, Class 5

1шт.

40

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

Выбрано товаров: 37
