Запчасти Case IH 1620 (9-232) - CAB SOUND INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

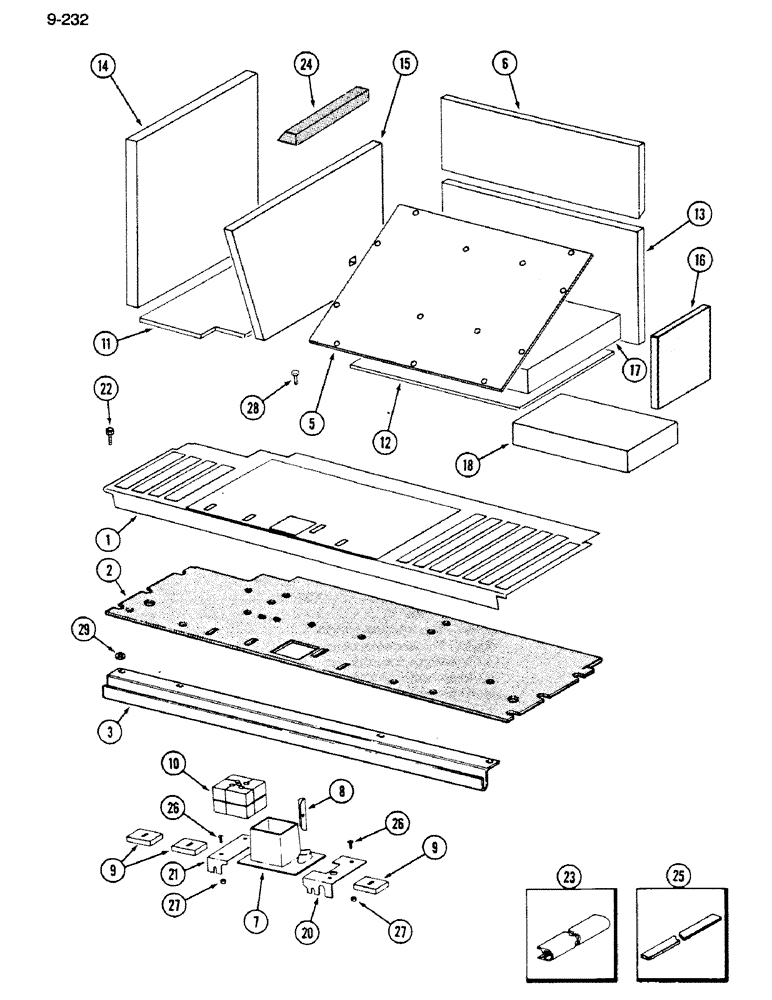

Схема запчастей Case IH 1620 - (9-232) - CAB SOUND INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING
5
13
6
25
18
26
2
7
26
17
22
27
27
14
28
9
8
24
11
3
10
16
12
21
20
1
15
9
23
29

Артикул

Название

Примечание

Количество

1

1329711C2

MAT

- floor (Replaces 1327920C2)

1шт.

2

1326885C1

INSULATOR

- floor mat sound (Replaces 1327921C1)

1шт.

3

1338051C1

BRACKET

SUPPORT - floor mat front retainer

1шт.

5

98123C1

PANEL

INSULATOR - seat platform

1шт.

6

98008C2

INSULATOR

- center rear support

1шт.

7

198075C1

INSULATOR

- steering pedestal

1шт.

8

187581C1

ANGLE

- steering pedestal

1шт.

9

1321935C1

SEAL

- pedal

3шт.

10

1324844C1

SEAL

- steering pedestal

1шт.

11

196587C7

INSULATOR

- floor sound, right cover

1шт.

12

91793C2

INSULATOR

- floor sound, center cover

1шт.

13

91790C1

INSULATOR

- sound, center rear

1шт.

14

1301219C2

SHEET

INSULATOR - right console sound, outer cover

1шт.

15

91797C1

INSULATOR

- right console sound, inner cover

1шт.

16

196598C2

SHEET

INSULATOR - left console sound, outer cover

1шт.

16

1322927C1

INSULATOR

- left panel

1шт.

17

91791C2

INSULATOR

- center sound

1шт.

DISCONTINUED P/N 91791C2. REMOVE CENTER SOUND SHEET FROM BENEATH OPERATOR CAB SEAT. TEST SHOWED NO INCREASE IN SOUND LEVEL WITH PAD REMOVED.

1шт.

18

91792C1

INSULATOR

- manual box sound

1шт.

20

1327567C1

PLATE

- pedestal boot hold down, left

1шт.

21

1327568C1

PLATE

- pedestal boot hold down, right

1шт.

22

23998R1

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Hd, 1/4" x 1/2"

4шт.

23

NSS

NOT SOLD SEPARAT

TRIM - rear inside edge to cab, 27 inch (Cut from bulk stock 196707C1)

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - left inside edge to cab, 14-3/4 inch (Cut from bulk stock 196707C1)

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - vertical flange under right floor, 6 inch (Cut from bulk stock 196707C1)

1шт.

196707C1

SEAL

TRIM - edge, 50 foot roll

1шт.

24

1288795C2

SEAL

- throttle lever

1шт.

25

1301236C1

SEALING STRIP

STRIP - operators cab to deck, 31 inch

2шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- truss head, 5/16 NC x 3/4 inch

6шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

6шт.

929460C1

FLUID

ADHESIVE - insulation (Fluid)

1шт.

29

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

Выбрано товаров: 32
