Запчасти Case IH 1620 (9-230) - OPERATORS CAB (CONTD) (10) - CAB & AIR CONDITIONING

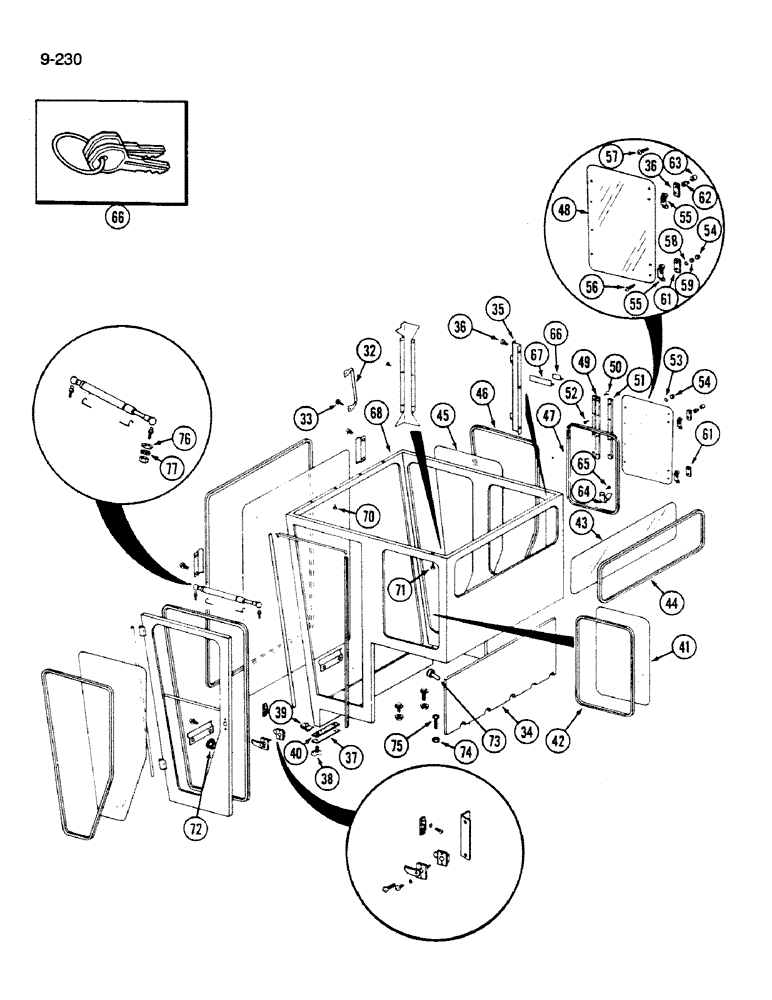

Схема запчастей Case IH 1620 - (9-230) - OPERATORS CAB (CONTD) (10) - CAB & AIR CONDITIONING
71
41
46
61
47
36
77
68
70
53
59
34
40
50
66
64
39
66
33
37
57
52
54
67
56
49
35
61
55
76
36
72
54
32
51
38
48
73
42
74
62
58
63
45
43
75
44
65
55

Артикул

Название

Примечание

Количество

1330154C91

CAB

ASSEMBLY - operator, Includes: Ref. 32 - 73 in this figure and parts in Figure 9-228

1шт.

32

1321545C1

HANDLE

- grab

1шт.

33

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- 5/16 NC x 1 inch

2шт.

34

1321286C2

PANEL

- rear acoustical

1шт.

35

1276309C1

SUPPORT

ASSEMBLY - right filler

1шт.

36

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - No. 10 x 3/8 inch

6шт.

37

1301129C1

DOOR

- clean out

1шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- thumb, clean out door

2шт.

39

1301128C1

NUT

- thumb screw

2шт.

40

NSS

NOT SOLD SEPARAT

STRIP - clean out door seal, 9-11/16 inch (Cut from bulk stock 1300025C1)

1шт.

41

198244C1

GLASS

- left rear

1шт.

42

NSS

NOT SOLD SEPARAT

MOULDING - cab left rear glass, 87 inch (Cut from bulk stock 198131C2)

1шт.

43

198247C1

GLASS

- cab rear

1шт.

44

NSS

NOT SOLD SEPARAT

MOUDLING - cab rear glass, 123 inch (Cut from bulk stock 198131C2)

1шт.

45

198184C1

GLASS

- cab right front

1шт.

46

NSS

NOT SOLD SEPARAT

MOULDING - cab right front glass, 130 inch (Cut from bulk stock 198131C2)

1шт.

47

109594C1

SEAL

MOULDING - right rear window weather

1шт.

48

1283343C1

GLASS

- right rear window

1шт.

49

1301233C1

HINGE

- right rear window

1шт.

50

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

4шт.

51

1301234C1

STRIP

SHIM - hinge, right rear window

1шт.

52

27093R1

SCREW

- pan head, No. 10 x 5/8

4шт.

53

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

54

196922C1

LOCK NUT

- window lock

8шт.

55

170404C1

HANDLE

ASSEMBLY - right rear window lock

2шт.

56

159972

SCREW,Cross Pan Hd, #10 - 24 x 1 3/4"

- pan head slotted, No. 10 x 1-3/4 inch

2шт.

57

26667R1

SCREW

- pan head slotted, No. 10 x 3/4 inch

4шт.

58

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

59

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

61

183585C1

STRIP

SHIM - strip, right rear window

2шт.

62

896274C1

BUSHING

- window retainer cushion

8шт.

63

196926C1

END FITTING

GRIP - window lock bolt cap

2шт.

64

1281761C2

SPRING

- latch, window

1шт.

65

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head cross slotted, No. 10-16 x 3/8 inch

2шт.

66

1970178C1

SET OF 2 KEYS

KEY - lock, door (Set of 2)

1шт.

68

NSS

NOT SOLD SEPARAT

CAB - operator (Furnish cab assembly 1330154C91)

1шт.

70

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self-tapping, 5/16 inch

10шт.

71

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self-tapping, 5/16 inch

4шт.

72

1330064C1

FLANGE NUT

- hex flange, 5/16 inch NC

6шт.

73

1329797C1

PLUG

- tube, rubber

1шт.

74

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

5шт.

75

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex, 3/8 NC x 1-1/2 inch

2шт.

76

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

77

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

929460C1

FLUID

- acoustical adhesive, 11 ounce tube

1шт.

Выбрано товаров: 45
