Запчасти Case IH 1620 (9-228) - OPERATORS CAB (10) - CAB & AIR CONDITIONING

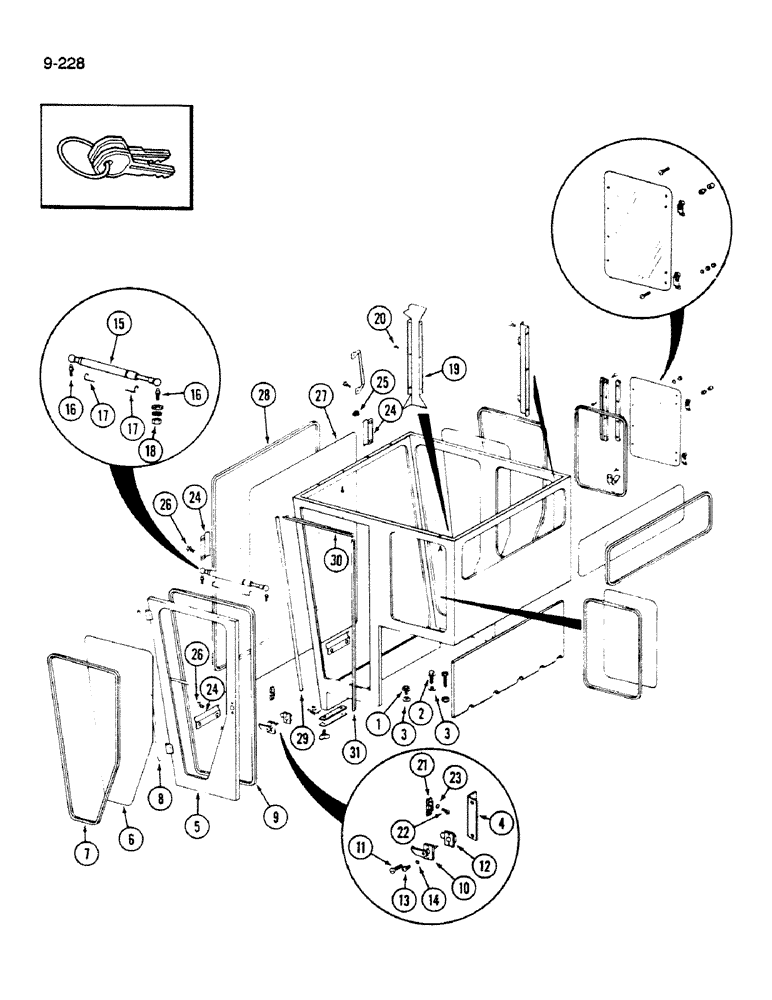

Схема запчастей Case IH 1620 - (9-228) - OPERATORS CAB (10) - CAB & AIR CONDITIONING
15
12
5
24
2
9
1
7
28
19
25
8
16
3
4
14
13
3
16
24
23
26
17
17
20
11
18
10
31
30
29
26
22
24
6
27
21

Артикул

Название

Примечание

Количество

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

- hex washer head, 3/8 NC x 1-1/4 inch

8шт.

3

1327765C1

LOCK NUT

- flange lock, 3/8 inch

18шт.

1330154C91

CAB

ASSEMBLY - operators with heater and air conditioner, Includes: cab door assembly and Ref. 4 - 31 in this figure and parts in Figure 9-230

1шт.

1327516C95

DOOR

ASSEMBLY - cab, Includes: Ref. 4 - 14

1шт.

4

1330184C1

BRACKET

ANGLE - support, latch

1шт.

5

NSS

NOT SOLD SEPARAT

DOOR ASSEMBLY - cab (Order 1327516C95)

1шт.

6

198184C1

GLASS

- cab door

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - cab door glass, 130-1/2 inch (Cut from bulk stock 198131C2)

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - cab door front, 52 inch (Cut from bulk stock 198522C1)

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP - cab door top and bottom, 120-5/16 inch (Cut from bulk stock 198522C1)

1шт.

10

175566C1

HANDLE

ASSEMBLY - door inside lock

1шт.

11

28595R1

SCREW

- pan head machine, No. 10-32 x 3/4 inch

2шт.

12

178748C2

LOCK

LATCH ASSEMBLY - door inside

1шт.

13

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head slotted, No. 10 NF x 1/2 inch

4шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15

1280157C1

GAS STRUT

GAS SPRING - door control

1шт.

16

F44882

BALL

STUD - ball

2шт.

17

1304647C1

CLIP

- retainer

2шт.

18

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

19

1276305C1

SUPPORT

ASSEMBLY - hose cover, left

1шт.

20

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - No. 10 x 3/8 inch

6шт.

21

392801R2

CATCH

STRIKER - door catch

1шт.

22

157391

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- 1/4 NC x 1/2

2шт.

23

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - external lock, 1/4 inch

2шт.

24

196742C2

SUPPORT

- windshield retainer

7шт.

25

25653R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- 5/16 NC x 1/2 inch

2шт.

26

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- 5/16 NC x 3/4 inch

8шт.

27

198242C1

GLASS

- cab windshield

1шт.

28

NSS

NOT SOLD SEPARAT

STRIP - windshield glass, 225 inch (Cut from bulk stock 198131C2)

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - cab door opening front, 54 inch (Cut from bulk stock 196707C1)

1шт.

30

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch (Cut from bulk stock 196707C1)

1шт.

31

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear, 54 inch (Cut from bulk stock 196707C1)

2шт.
