Запчасти Case IH 1620 (9-224) - SEAT ASSEMBLY, GRAMMER (10) - CAB & AIR CONDITIONING

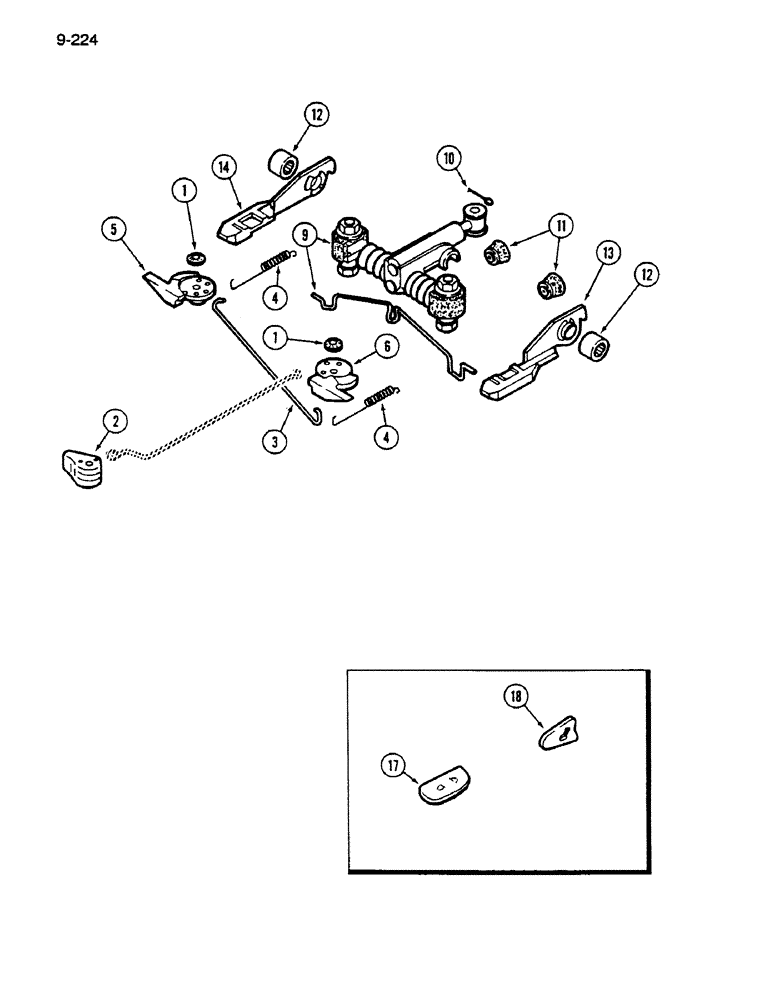

Схема запчастей Case IH 1620 - (9-224) - SEAT ASSEMBLY, GRAMMER (10) - CAB & AIR CONDITIONING
1
18
4
1
13
9
14
6
11
4
17
10
3
5
12
12
2

Артикул

Название

Примечание

Количество

91788C91

SEAT

ASSEMBLY - operators, Includes: isolator repair kit and Ref. 1 - 18 in this figure and parts in Figures 9-222 and 9-226

1шт.

98148C1

KIT

REPAIR KIT - isolator, Includes: Ref. 1 - 14

1шт.

1

60-4882T1

RING, SNAP

RING - grip

2шт.

2

NSS

NOT SOLD SEPARAT

HANDLE - isolator

1шт.

Part of Miscellaneous Parts Kit P/N 98144C1

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

4

60-1603T1

SPRING

- tension

2шт.

5

NSS

NOT SOLD SEPARAT

ECCENTRIC - isolator, right

1шт.

6

NSS

NOT SOLD SEPARAT

ECCENTRIC - isolator, left

1шт.

9

NSS

NOT SOLD SEPARAT

ISOLATOR ASSEMBLY - seat, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - isolator

1шт.

11

NSS

NOT SOLD SEPARAT

BUMPER - isolator (Set of 2)

1шт.

Part of Miscellaneous Parts Kit P/N 98144C1

1шт.

12

60-4879T1

NEEDLE BEARING

- needle roller

2шт.

Part of Miscellaneous Parts Kit P/N 98144C1

1шт.

13

NSS

NOT SOLD SEPARAT

BRACKET - catch mounting, left

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET - catch mounting, right

1шт.

98144C1

KIT

PARTS KIT - miscellaneous, Includes: Ref. 2, 11, 12, 17 and 18 in this figure and parts in Figure 9-226

1шт.

17

60-4861T1

HANDLE

- slide

1шт.

Part of Miscellaneous Parts Kit P/N 98144C1

1шт.

18

NSS

NOT SOLD SEPARAT

HANDLE - recline

1шт.

Part of Miscellaneous Parts Kit P/N 98144C1

1шт.
