Запчасти Case IH 1620 (9-222) - SEAT ASSEMBLY, GRAMMER (10) - CAB & AIR CONDITIONING

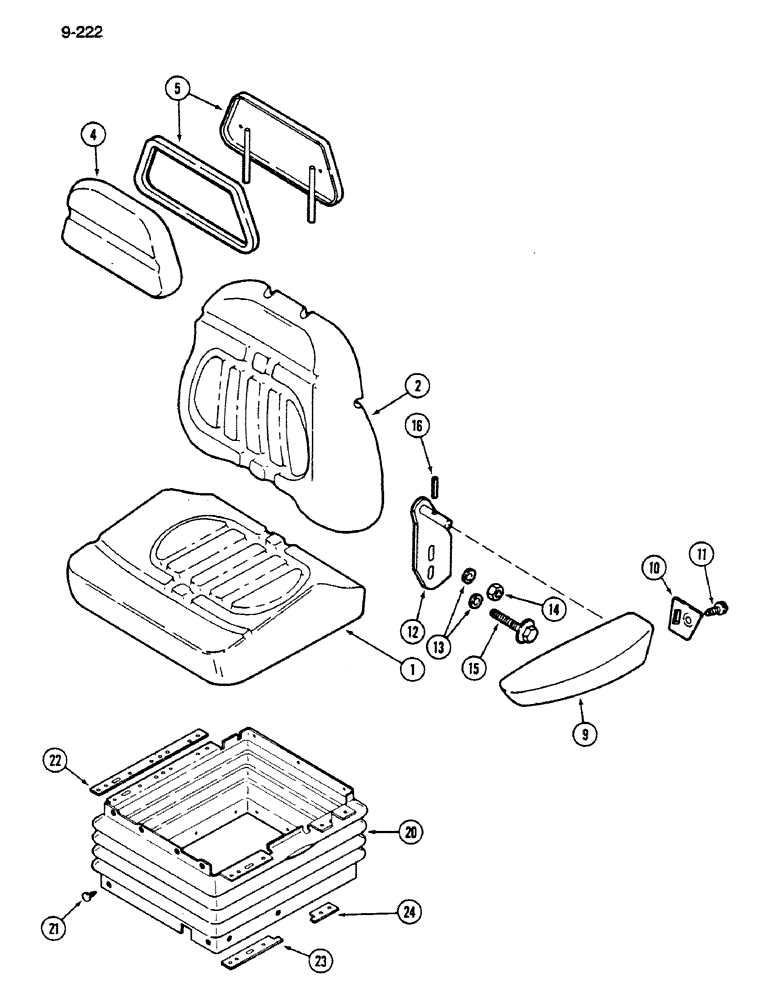

Схема запчастей Case IH 1620 - (9-222) - SEAT ASSEMBLY, GRAMMER (10) - CAB & AIR CONDITIONING
23
1
9
24
11
2
20
13
10
12
14
21
22
16
4
15
5

Артикул

Название

Примечание

Количество

91788C91

SEAT

ASSEMBLY - operators, Includes: cushion seat and Ref. 1 - 24 in this figure and parts in Figures 9-224 and 9-226

1шт.

98141C1

KIT

CUSHION SEAT - seat, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

98143C1

KIT

EXTENSION KIT - backrest, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

EXTENSION CUSHION - backrest, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

SUPPORT - cushion

1шт.

98142C1

ARMREST ASSY.

ARMREST KIT - seat, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

ARMREST - seat

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - armrest, left

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - cover retaining

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - armrest

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

14

60-4845T1

NUT

- hex

1шт.

15

60-4843T1

SCREW

BOLT - serrated retaining

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

98150C1

KIT

BELLOWS KIT - suspension, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

21

60-1613T1

FASTENER

PLUG - snap retaining ( replaced 60-1613T )

25шт.

22

60-1632T1

PLATE

- cover strip, right

1шт.

23

60-4912T1

PLATE

- cover strip, left front

1шт.

24

60-4913T1

PLATE

- cover strip, left rear

1шт.

91840C1

KIT

TOP KIT - seat (Includes all parts above suspension)

1шт.

98147C1

KIT

CHASSIS KIT - seat (Includes all parts above suspension except for armrest, backrest and seat cushion and backrest extension)

1шт.

Выбрано товаров: 24
