Запчасти Case IH 1620 (9-210) - LEFT CONSOLE (10) - CAB & AIR CONDITIONING

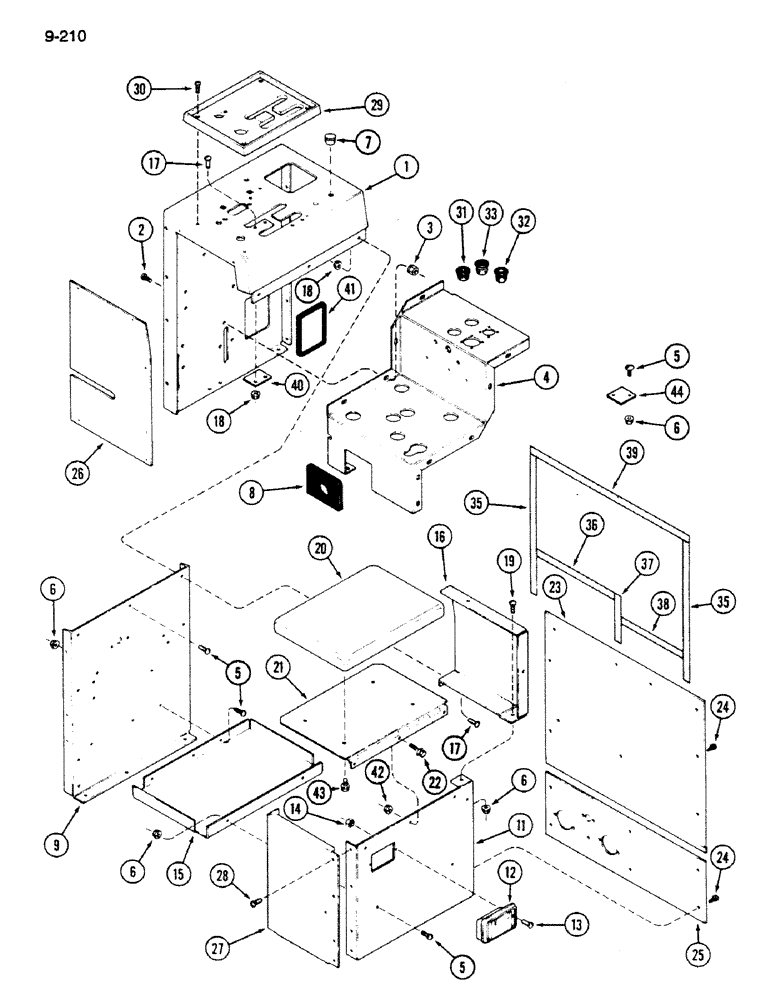

Схема запчастей Case IH 1620 - (9-210) - LEFT CONSOLE (10) - CAB & AIR CONDITIONING
36
39
18
26
6
43
4
17
6
21
16
30
8
44
6
13
5
17
3
12
37
35
24
41
24
35
29
18
2
20
33
22
11
5
32
9
27
7
6
14
1
5
28
15
31
42
40
25
38
19
23

Артикул

Название

Примечание

Количество

1

193065C7

SUPPORT

- left console rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

4

1321719C2

SUPPORT

- left console lower

1шт.

5

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

57шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

60шт.

7

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

8

1327577C2

GROMMET

SEAL - harness opening (Insulator)

1шт.

9

1324177C2

PLATE

SUPPORT - manual box rear

1шт.

11

1324178C2

PLATE

SUPPORT - manual box front

1шт.

12

A165449

ASH TRAY

TRAY - ash

1шт.

13

157070

SCREW,Cross Oval Hd, #10"-32 x 1/2"

- machine, No. 10-32 NF x 1/2 inch

2шт.

14

115999

NUT,#10-32

- No. 10-32 NF

2шт.

15

1324176C1

PLATE

SUPPORT - manual box bottom

1шт.

16

91878C2

SUPPORT

- manual box cover (Left)

1шт.

17

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

4шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

4шт.

19

1330151C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

20

98129C1

PANEL

- trim (Gray)

1шт.

21

1329876C1

PLATE

COVER ASSEMBLY - manual box

1шт.

22

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

- flange lock, 1/4 NC x 1/2 inch

3шт.

23

1327958C1

PLATE

- left console outer cover

1шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 x 1/2 inch

16шт.

25

1283280C2

SUPPORT

- left console connector panel

1шт.

26

91776C1

PLATE

- left console inner

1шт.

27

1324175C2

PLATE

SUPPORT - right side manual box

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recessed, tap, No. 10 x 1/2 inch

7шт.

29

1285417C1

COVER

- left console

1шт.

30

27204R1

SELF-TAP SCREW

- oval head cross recessed, No. 10 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- 3/8 inch ID

2шт.

32

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

2шт.

33

198820C1

GROMMET

- plug

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - console cover, 18 inch (Cut from bulk stock 195917C1)

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - console cover, 12 inch (Cut from bulk stock 195917C1)

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - console cover, 7 inch (Cut from bulk stock 195917C1)

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - console cover, 9 inch (Cut from bulk stock 195917C1)

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - console cover, 23 inch (Cut from bulk stock 195917C1)

1шт.

40

195239C2

BAR

- H pattern filler plate

1шт.

41

NSS

NOT SOLD SEPARAT

TRIM - edge, in left rear console panel, 16 inch (Cut from bulk stock 196707C1)

1шт.

42

1330157C1

FLANGE NUT

- hex flange lock, 1/4 inch

3шт.

43

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flanged lock, 1/4 NC x 1/2 inch

4шт.

44

1330179C1

PLATE

- cover

1шт.

Выбрано товаров: 42
