(9-208) - RIGHT CONSOLE (CONTD)

Запчасти Case IH 1620 (9-208) - RIGHT CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING

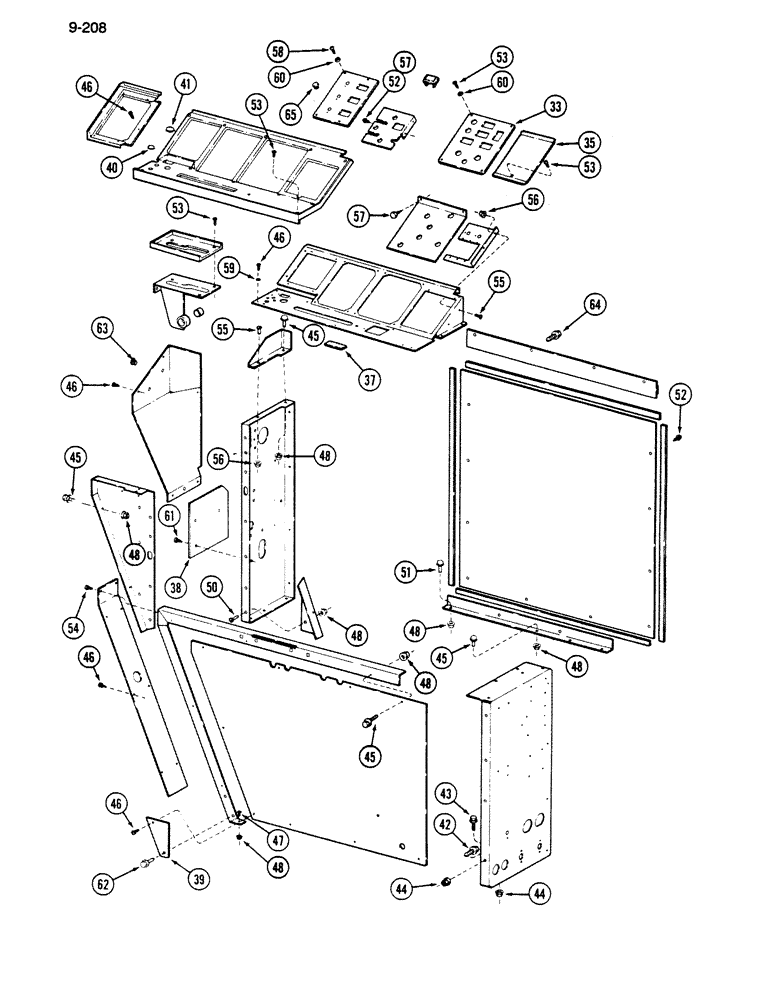

Схема запчастей Case IH 1620 - (9-208) - RIGHT CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING
54
48
61
38
55
52
60
48
40
58
48
51
46
60
44
62
46
55
50
56
43
59
48
48
53
53
46
37
53
41
65
48
39
52
63
44
46
56
45
53
46
45
47
33
42
45
45
48
57
64
57
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33

1276211C1

PANEL

- machine control

1шт.

35

187573C1

COVER

- fuse panel

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - right console cover, 3 inch (Cut from bulk stock 195917C1)

2шт.

38

1327985C1

PLATE

- hole cover, right front

1шт.

39

91705C1

PLATE

BAR - right console, lower

1шт.

40

353-403

PLUG,Dome, .437" hole, Nylon

- hole, 1/2 inch diameter

2шт.

41

183617C1

PLUG

- right console

1шт.

42

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange, 3/8 NC x 1 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

45

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW - hex flange lock, 5/16 NC x 3/4 inch

10шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head tapping, No. 10 x 1/2 inch

32шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 NC inch

14шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- truss head, 5/16 NC x 3/4 inch

2шт.

51

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

52

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex tapping, 1/4 NC x 1/2 inch

10шт.

53

27204R1

SELF-TAP SCREW

- oval head, No. 10-16 NC x 3/4 inch

19шт.

54

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - pan head tapping, 1/4 NC x 1/2 inch

4шт.

55

937875R1

SCREW,Serr, 1/4" - 20

- truss head, 1/4-20 NC x 3/4 inch

1шт.

56

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

1шт.

57

1270762C1

SELF-TAP SCREW

- pan head, No. 10-16 x 3/4 inch

6шт.

58

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW - oval head cross slotted, No. 10 x 1 inch

4шт.

59

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

3шт.

60

1329968C1

WASHER

- No. 10 oval head finishing (Black)

8шт.

61

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - pan head, 1/4 NC x 1/2 inch

3шт.

62

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW - hex washer head, 5/16 NC x 1 inch

1шт.

63

1321784C1

PLUG

- 5/16 inch nylon

2шт.

64

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW - hex washer head tap, 1/4 NC x 3/4 inch

4шт.

65

353-403

PLUG,Dome, .437" hole, Nylon

Block Dome, .437" hole, Nylon

1шт.
