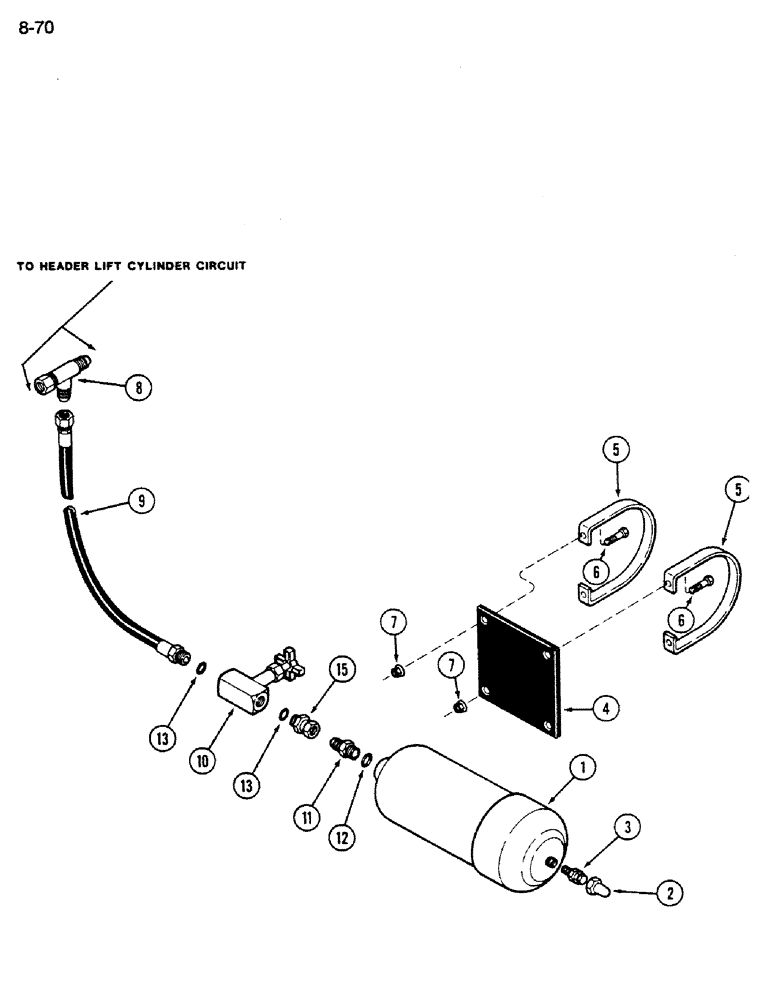

Запчасти Case IH 1620 (8-070) - ACCUMULATOR ATTACHMENT (07) - HYDRAULICS

1

84927C91

TANK

ASSEMBLY - accumulator, Includes: Ref. 2 and 3

1шт.

2

172131C1

GUARD

- valve

1шт.

3

172130C91

VALVE

- relief

1шт.

4

196821C1

STRIP

CUSHION - accumulator

1шт.

5

172133C1

SUPPORT

- accumulator

2шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch NC

4шт.

8

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 1/2 tube 3/4-16 thread

1шт.

9

628437R91

HOSE

- accumulator, 18 inch

1шт.

10

183510C1

VALVE

ASSEMBLY

1шт.

11

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short reducer, 3/4 tube 7-1/16-12 thread x 1/2 tube 3/4-16 thread

1шт.

12

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

15

1327736C1

ELBOW

CONNECTOR - adaptor, 1/2 tube 3/4-16 thread x 3/4 tube 1-1/16-12 thread

1шт.
