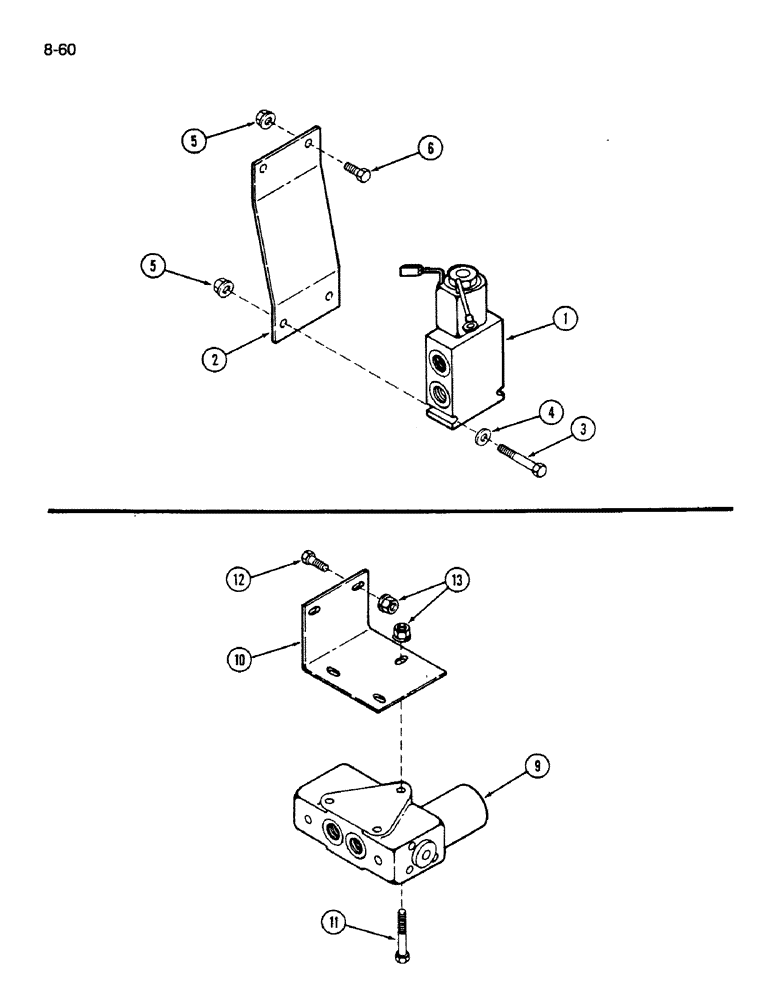

Запчасти Case IH 1620 (8-060) - SEPARATOR CLUTCH VALVE MOUNTING, MODULAR CONTROLS, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, see Figure 8-064, modular controls

1шт.

2

187506C1

SUPPORT

- separator clutch valve, modular controls

1шт.

3

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5, Modular controls

2шт.

4

22859R1

WASHER

- flat, 11/32 x 3/4 x 21/32 inch, modular controls

2шт.

5

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC, modular controls

4шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Modular controls Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, see Figure 8-62, control concepts

1шт.

10

1301037C1

ANGLE

SUPPORT - separator clutch valve, control concepts

1шт.

11

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch, control concepts

3шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Control concepts Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

13

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC, control concepts

5шт.
