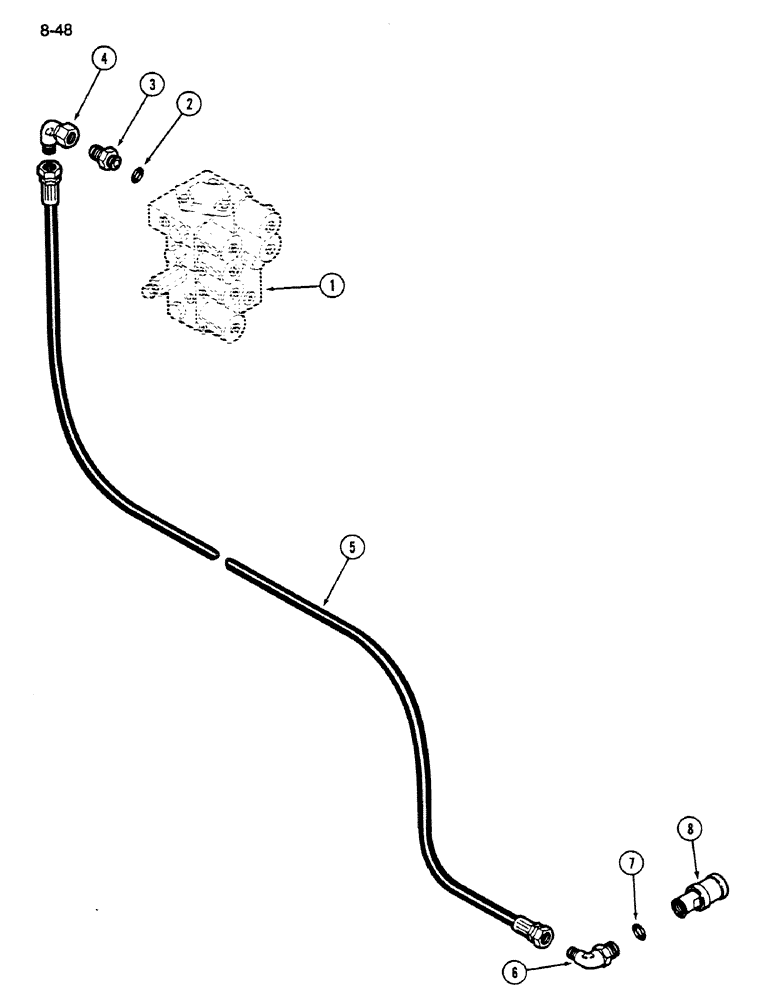

Запчасти Case IH 1620 (8-048) - REEL LIFT CIRCUIT (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-028

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 tube 9/16-18 inch thread

1шт.

5

1321591C1

HOSE

- reel lift, 94 inch (2400 mm)

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 5/8 tube 7/8-14 thread x 3/8 tube 9/16-18 inch thread

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 5/8 inch OD tube, class 6

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing female, see Figure 8-076

1шт.
