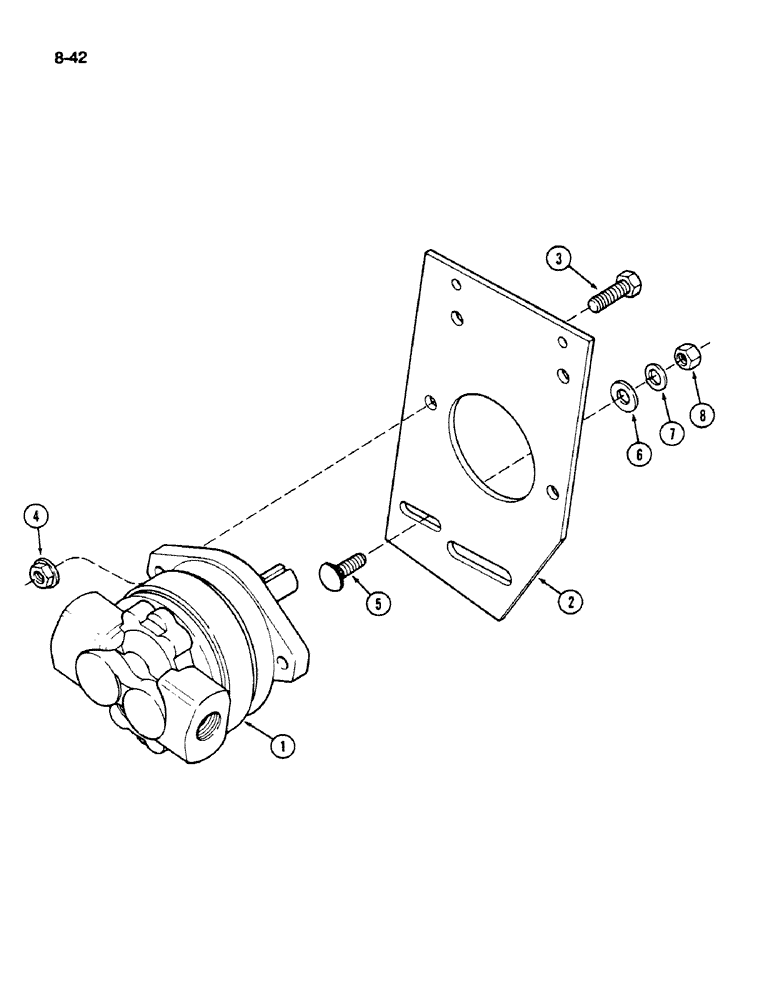

Запчасти Case IH 1620 (8-042) - HYDRAULIC REEL DRIVE PUMP MOUNTING (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive, see Figure 8-044

1шт.

2

1315486C1

PLATE

- pump mounting

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

5

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

6

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.
