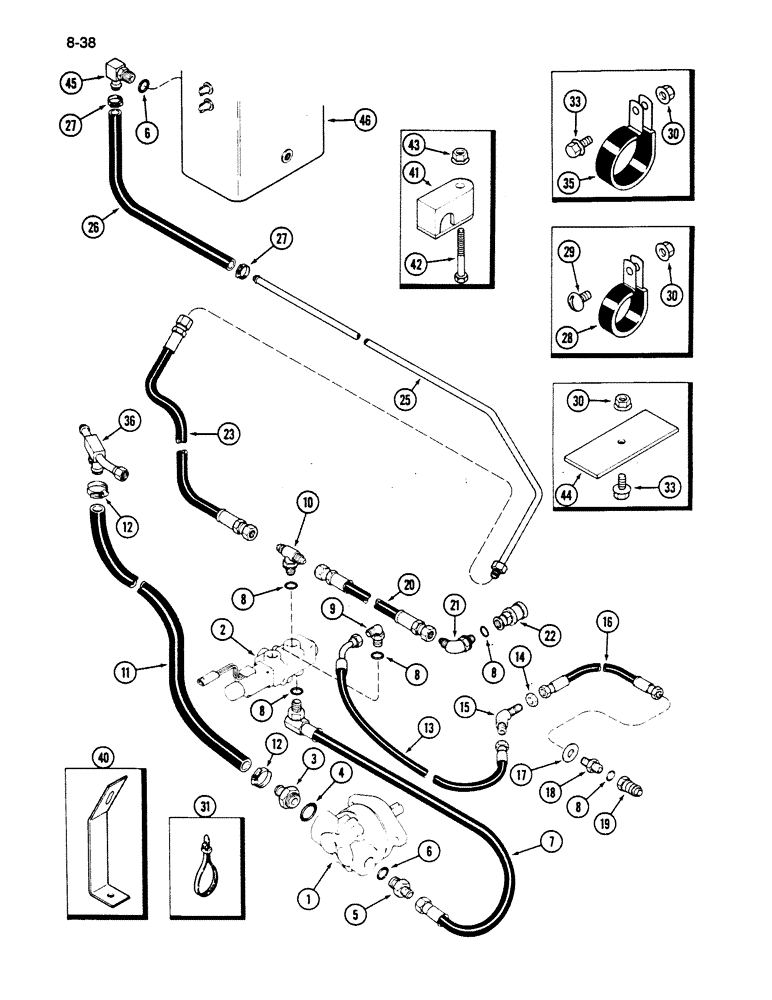

Запчасти Case IH 1620 (8-038) - HYDRAULIC REEL DRIVE CIRCUIT (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive, see Figure 8-042

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive, see Figure 8-046

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-1/4 inch OD tube

1шт.

5

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, reducer, 5/8 tube 7-8/14 thread x 3/4 tube 1-1/16-12 thread

1шт.

6

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

2шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 35 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

5шт.

9

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable reducer, 1/2 tube 3/4-16 thread x 5/8 tube 7/8-14 thread

1шт.

Ref. 9 changed to 2189-5281

1шт.

10

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- adjustable, 5/8 tube 7/8-14 thread

1шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE - reel drive suction, 98 inch

1шт.

12

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

2шт.

13

1327609C1

HOSE

- reel drive pressure, 20 inch

1шт.

Ref. 13, 14, 15, 16 and 18 - Combined into 1254574C2.

1шт.

14

9403294

NUT

- bulkhead union lock, 3/4-16 thread

1шт.

Ref. 13, 14, 15, 16 and 18 - Combined into 1254574C2.

1шт.

15

1321284C1

FITTING

UNION - 45 degree bulkhead, 1/2 tube 3/4-16 thread

1шт.

Ref. 13, 14, 15, 16 and 18 - Combined into 1254574C2.

1шт.

16

1327580C1

HOSE

- reel drive pressure, 40 inch

1шт.

Ref. 13, 14, 15, 16 and 18 - Combined into 1254574C2.

1шт.

17

1327632C1

WASHER

- white

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-14 thread

1шт.

Ref. 13, 14, 15, 16 and 18 - Combined into 1254574C2.

1шт.

19

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing male, see Figure 8-076

1шт.

20

1327616C1

HOSE

- return, 10 inch

1шт.

21

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable, 5/8 tube 7/8-14 thread

1шт.

22

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing female, see Figure 8-076

1шт.

23

1327576C1

HOSE

- return, 82 inch

1шт.

25

187777C1

HYD TUBE

TUBE - reel drive return

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - return, 18 inch (From bulkroll S118576)

1шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12 Type F

2шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- closed, 3/4 inch diameter

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 NC

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon 14 in

1шт.

33

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange lock, 3/8 NC x 3/4 inch

6шт.

35

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

3шт.

36

REF

INSTRUCTION

TUBE - return manifold

1шт.

40

1319385C1

SUPPORT ASSY.

SUPPORT - reel drive return tube

1шт.

41

182822C1

SUPPORT

CLAMP - tube

3шт.

42

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- 1/4 NC x 2-1/2 inch

3шт.

43

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

44

573186R1

PLATE

BAR - return tube clamp

1шт.

45

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, 3/4 tube

1шт.

46

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, see Figure 8-002

1шт.
