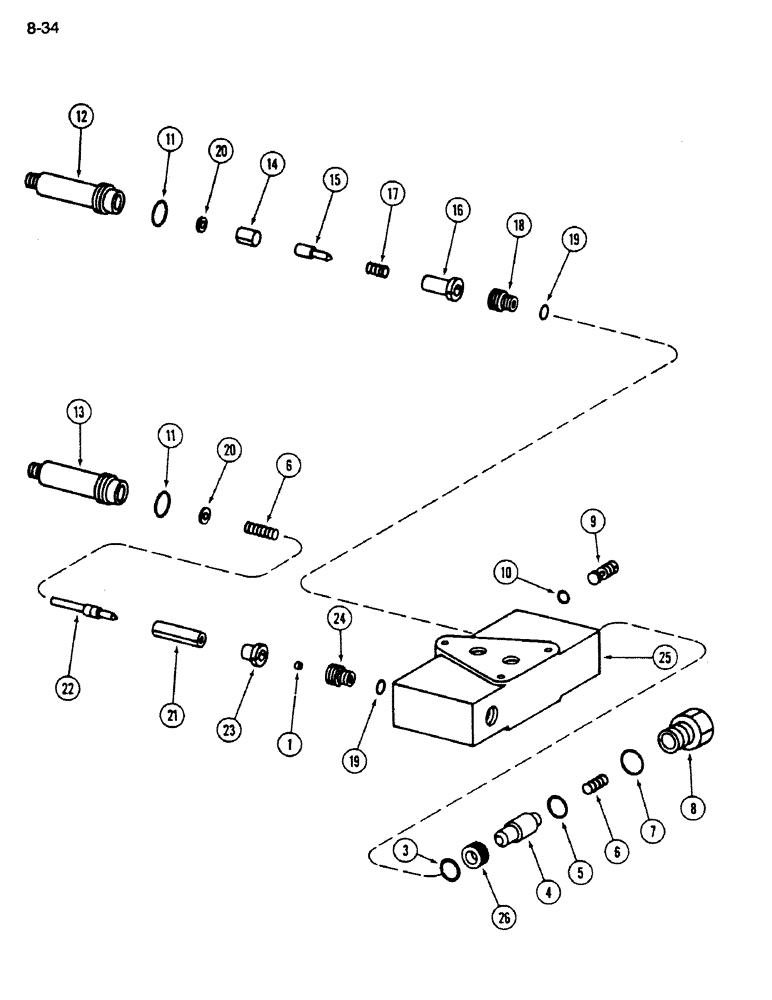

Запчасти Case IH 1620 (8-034) - SINGLE/BI-DIRECTIONAL VALVE ASSEMBLY, REEL LIFT (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1301652C91
VALVE
ASSEMBLY - unload/single bi-directional, Includes: Ref. 1 - 26 and valve seal kit
1шт.
1
1301635C1
PLUG
- orifice
1шт.
3
392382R1
O-RING,0.551" ID x 0.07" Width
- 9/16 x 11/16 inch, Class 6
1шт.
Part of Valve Seal Kit P/N 1282280C1
1шт.
4
1301651C1
PIN
POPPET - valve
1шт.
5
A59956
O-RING,0.739" ID x 0.879" OD
- 3/4 x 7/8 inch, Class 5
1шт.
Part of Valve Seal Kit P/N 1282280C1
1шт.
6
1301640C1
SPRING
- poppet
2шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 5/8 inch OD tube, Class 6
1шт.
Part of Valve Seal Kit P/N 1282280C1
1шт.
8
1301690C1
PLUG
- end
1шт.
9
1301631C1
PLUG,5/16" - 24 x 14.80mm, Slotted, HT
PLUG - seal
1шт.
10
529909R1
O-RING,1.78mm Thk x 2.54mm ID
- 7/64 x 1/4 inch, Class 6
1шт.
Part of Valve Seal Kit P/N 1282280C1
1шт.
11
384578R1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
- 13/64 x 15/16 inch, Class 6
2шт.
Part of Valve Seal Kit P/N 1282280C1
1шт.
12
1301641C1
STUD
SLEEVE ASSEMBLY - poppet
1шт.
13
1301627C1
STUD
SLEEVE ASSEMBLY - poppet
1шт.
14
1301643C1
VALVE
ARMATURE - poppet
1шт.
15
1301644C1
PIN
POPPET - valve, Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement
1шт.
16
1301646C1
BUSHING
- pole
1шт.
17
1301821C1
SPRING
- poppet
1шт.
18
1301625C1
ORIFICE
- bushing
1шт.
19
384937R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
- 1/4 x 3/8 inch, Class 6
2шт.
Part of Valve Seal Kit P/N 1282280C1
1шт.
20
1301642C1
WASHER
- armature
2шт.
21
1301648C1
ARMATURE
- poppet
1шт.
22
1301647C1
POPPET
- valve
1шт.
23
1301624C1
BUSHING
- pole
1шт.
24
1301639C1
PISTON
- bushing
1шт.
25
NSS
NOT SOLD SEPARAT
BODY - valve (Order 1301652C91)
1шт.
26
NSS
NOT SOLD SEPARAT
SEAT - poppet (Order 1301652C91)
1шт.
1282280C1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
SEAL KIT - valve, Includes: Ref. 3, 5, 7, 10, 11 and 19
1шт.
Выбрано товаров: 33
