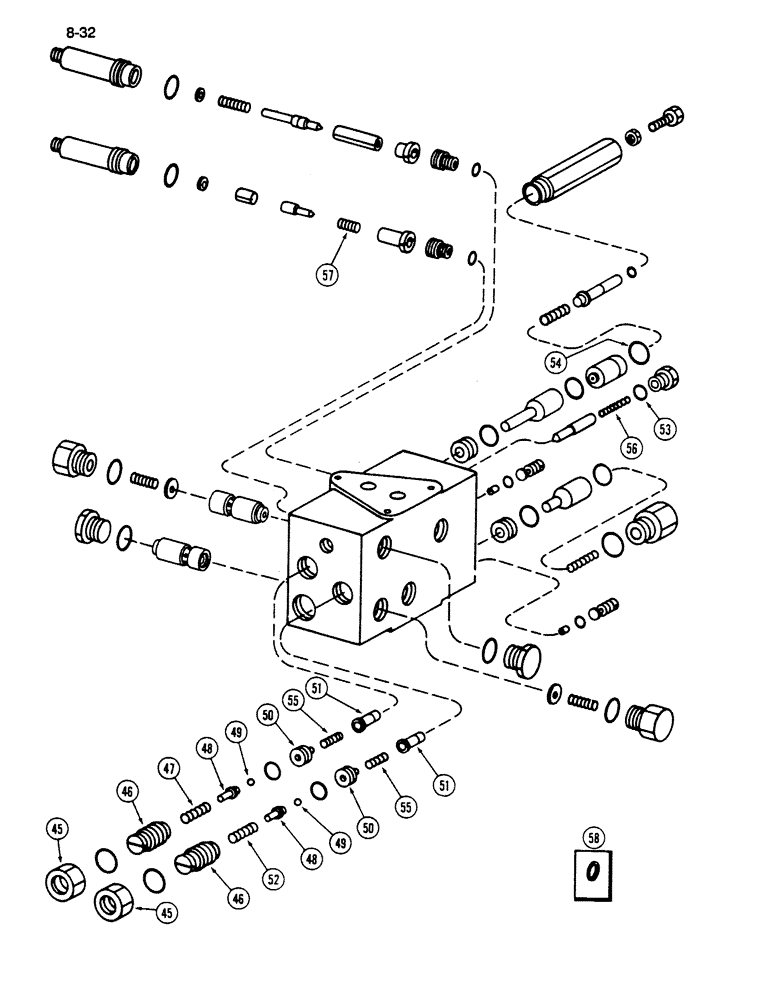

Запчасти Case IH 1620 (8-032) - HEADER VALVE ASSEMBLY (CONTD) (07) - HYDRAULICS

1954161C1

VALVE

ASSEMBLY - header (Replaces 1267033C92), Includes: Ref. 45 - 58 and seal repair O-ring kit in this figure and parts in Figure 8-030

1шт.

1267033C92

VALVE

ASSEMBLY - header, Includes: Ref. 45 - 58 and seal repair O-ring kit in this figure and parts in Figure 8-030

1шт.

45

1301674C1

NUT

- hex, 1 inch

2шт.

One used for 1954161C1 valve.

1шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - guide

2шт.

One used for 1954161C1 valve.

1шт.

47

1272403C1

SPRING

- guide

1шт.

48

1301677C1

PIN

GUIDE - orifice

2шт.

One used for 1954161C1 valve.

1шт.

49

211-206

BALL,1/4" Dia

- metal, 1/4 inch, Grade 25

2шт.

One used for 1954161C1 valve.

1шт.

50

1301654C1

NUT

ORIFICE - poppet

2шт.

One used for 1954161C1 valve.

1шт.

51

1301678C1

VALVE

POPPET - valve

2шт.

One used for 1954161C1 valve.

1шт.

52

1301636C1

SPRING

- poppet

1шт.

53

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

Part of Seal Repair O-ring Kit P/N 1282279C1

1шт.

54

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk, class 5

1шт.

Part of Seal Repair O-ring Kit P/N 1282279C1

1шт.

55

1301679C1

SPRING

- orifice

2шт.

56

1301729C1

SPRING

- poppet

1шт.

57

1301821C1

SPRING

- poppet

1шт.

530575R91

SHIM KIT

- relief valve, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch (4)

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch (4)

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch (2)

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.042 inch (1)

1шт.

1282279C1

SEAL KIT

O-RING KIT - seal repair, Includes: Ref. 53 and 54 in this figure and parts in Figure 8-030

1шт.
