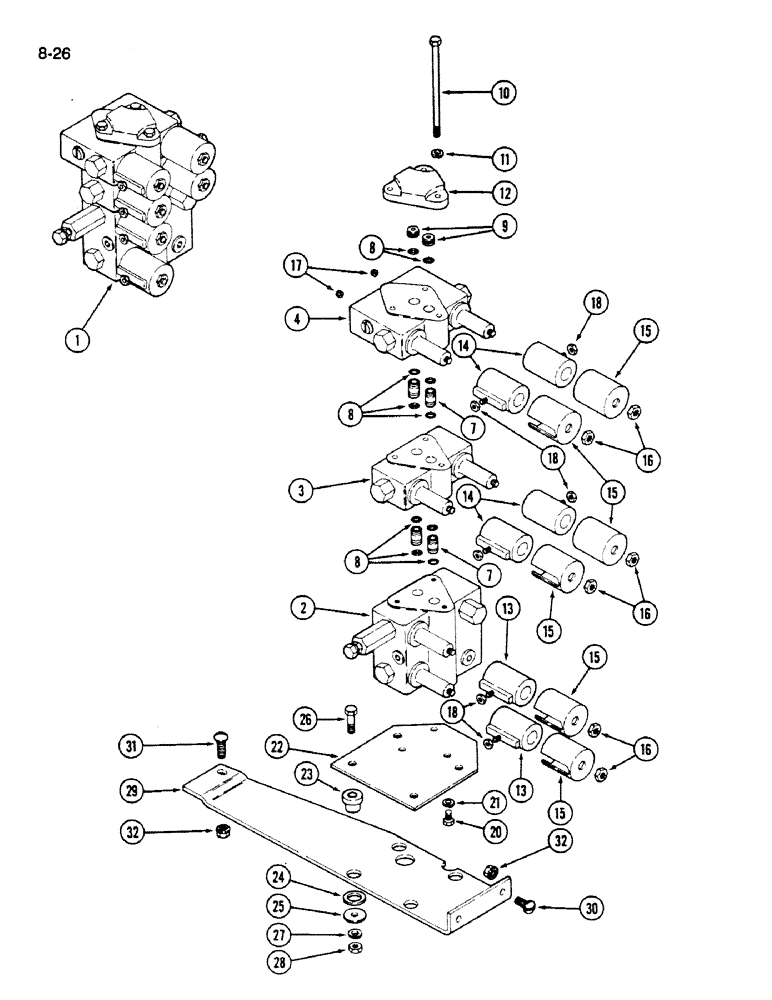

Запчасти Case IH 1620 (8-026) - CONTROL VALVE AND MOUNTING, COMBINES WITHOUT FORE AND AFT (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (Order components), Includes: Ref. 2 - 18

1шт.

2

1954161C1

VALVE

ASSEMBLY - header, see Figure 8-030

1шт.

3

1301652C91

VALVE

ASSEMBLY - unload single/bi-directional, see Figure 8-034

1шт.

4

1267035C92

VALVE

ASSEMBLY - double piloted, see Figure 8-036

1шт.

7

1301630C1

TUBE

- through

4шт.

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

SEAL KIT - O-ring, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 3/8 x 1/2 inch, Class 6

14шт.

9

1301634C1

VALVE

PLUG - cap

2шт.

10

28602R1

BOLT,Hex, 1/4" - 20 x 4 1/4", Gr 5

- hex, 1/4 NC x 4-1/4 inch

3шт.

11

NLS

NO LONGER SERVICED

- external lock, 1/4 inch

3шт.

12

85258C1

CAP

- end

1шт.

13

1301730C1

VALVE

COIL - header valve

2шт.

14

1301633C1

COIL

- unloader and piloted valve

4шт.

15

1301632C1

CAP

COVER - coil

6шт.

16

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

6шт.

17

1301637C1

ORIFICE

PLUG - orifice

2шт.

18

112432

NUT,#10-32, Brass

Machine screw #10-32, Brass

6шт.

20

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

22

183683C1

BAR

PLATE - control valve mounting

1шт.

23

196504C1

BUSHING

- header lift valve

4шт.

24

366112R1

WASHER

- flat, 25/32 x 1-1/4 x 7/64 inch

4шт.

25

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

4шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

183684C1

SUPPORT

- control valve

1шт.

30

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

31

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

3шт.
