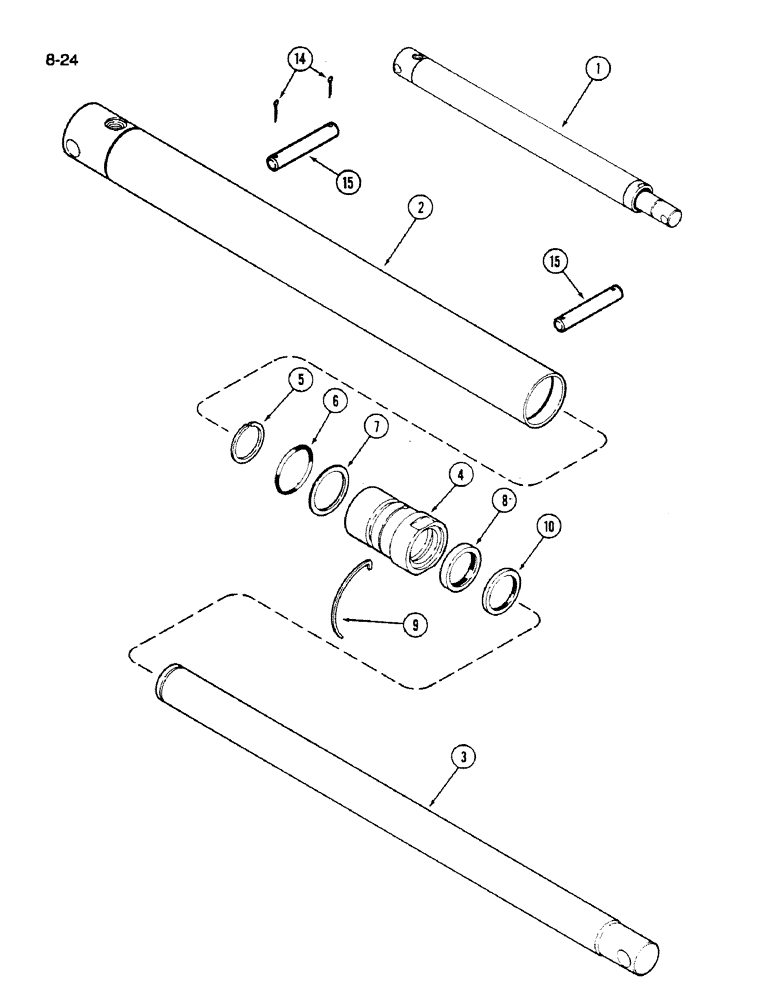

Запчасти Case IH 1620 (8-024) - HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - lift, hydraulic, Includes: Ref. 2 - 15

2шт.

1

127779C94R

REMAN-HYD CYLINDER

1620 CASE IH AXIAL-FLOW COMBINE (NORTH AMERICA), Assembly, lift, hydraulic (1/86-12/92)

2шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 127779C94)

1шт.

3

127780C2

ROD

- piston

1шт.

224718C92

SEAL KIT

SERVICE KIT - O-ring and seal

1шт.

4

142568C2

HEAD

- front, Includes: Ref. 5 - 15

1шт.

5

NSS

NOT SOLD SEPARAT

RING - stop, piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16, Class 5, front head

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

14

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

- pivot, cylinder

1шт.
