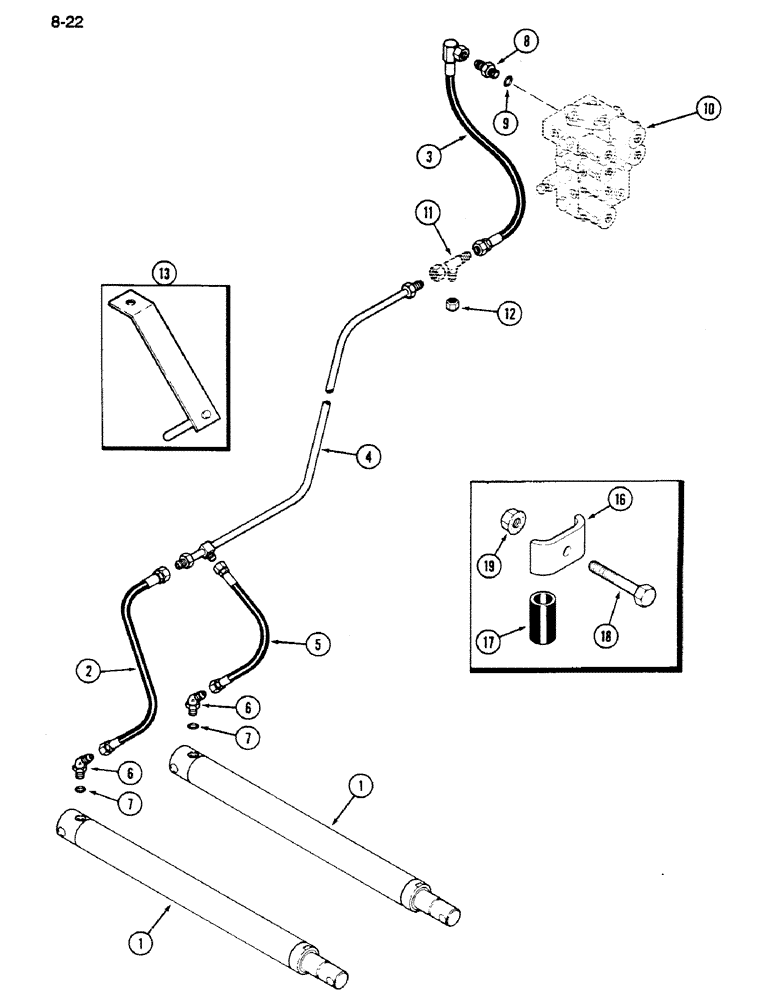

Запчасти Case IH 1620 (8-022) - HEADER LIFT CYLINDER CIRCUIT (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift, see Figure 8-024

2шт.

2

1310709C1

HOSE

- header lift cylinder, 45 inch

1шт.

3

1272473C91

TUBE ASSY.

HOSE - header lift, 29 inch

1шт.

4

187757C1

TUBE ASSY.

TUBE - header lift cylinder

1шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch

1шт.

6

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degree adjustable, 1/2 tube 3/4-16 inch thread

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - short, 5/8 tube 7/8-14 inch thread

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube, Class 6

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-030

1шт.

11

REF

INSTRUCTION

TEE - used with accumulator attachment (See Page 8-11)

1шт.

12

9403372

CAP,37 Degree, 3/4"-16

- 1/2 tube 3/4-16 inch thread

1шт.

13

173143C1

SUPPORT ASSY.

SUPPORT - header lift hose

1шт.

16

165601C1

CLAMP

- header lift cylinder tube

2шт.

17

163491C1

RUBBER INSULATOR

STRIP - tube clamp

2шт.

18

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.
