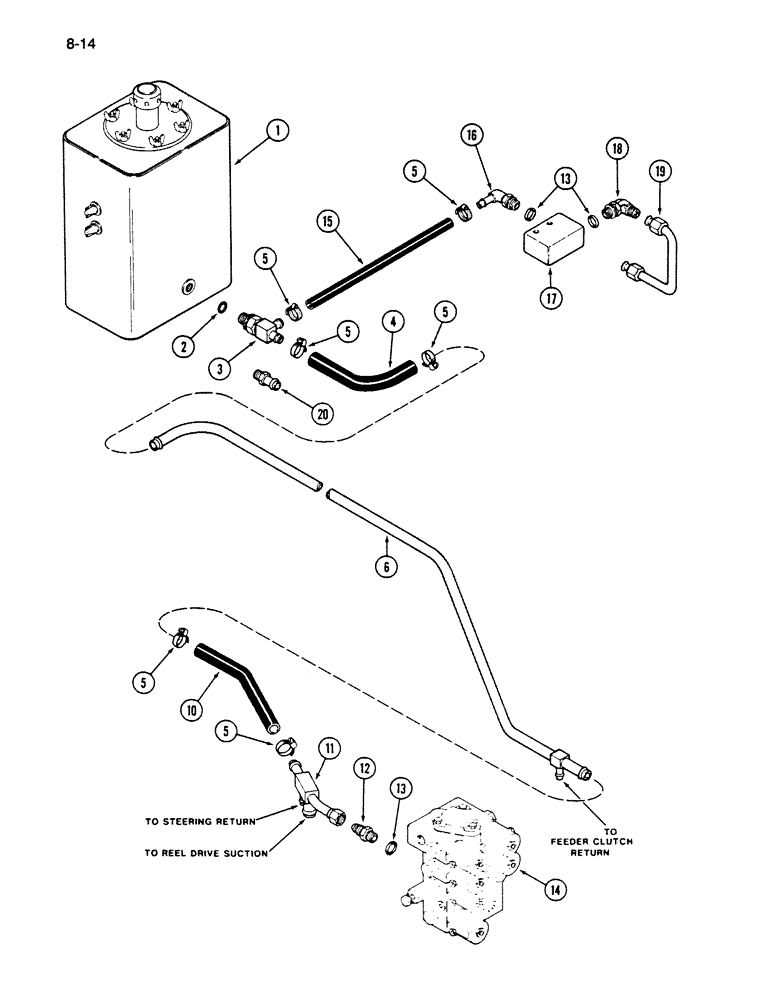

Запчасти Case IH 1620 (8-014) - HEADER LIFT RETURN CIRCUIT (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, see Figure 8-002

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube, Class 6

1шт.

3

172059C1

TEE

ASSEMBLY - adjustable, 1-1/16-12 inch thread x 3/4 x 5/8 inch OD barb end (Replaces 470420R11)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 3/4 inch ID oil, 12 inch (From bulk roll B90927)

1шт.

5

214-2354

CLAMP - hose, No. 12 Type F

6шт.

6

187755C1

TUBE ASSY.

TUBE - header lift return

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - 3/4 inch ID oil, 7 inch (From bulk roll B90927)

1шт.

11

1310757C1

TUBE

- manifold

1шт.

12

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 3/4 tube 1-1/16-12 thread x 5/8 tube 7/8-14 inch thread

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube, Class 6

3шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-028

1шт.

15

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

16

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread x 5/8 barb end

1шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - relief, see Figure 8-016

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread

1шт.

19

1957328C1

TUBE

ASSEMBLY - pressure, relief valve

1шт.

20

470420R11

FITTING

CONNECTOR - straight, 3/4 tube 1-1/16-12 thread x 3/4 inch barb end (If equipped)

1шт.
