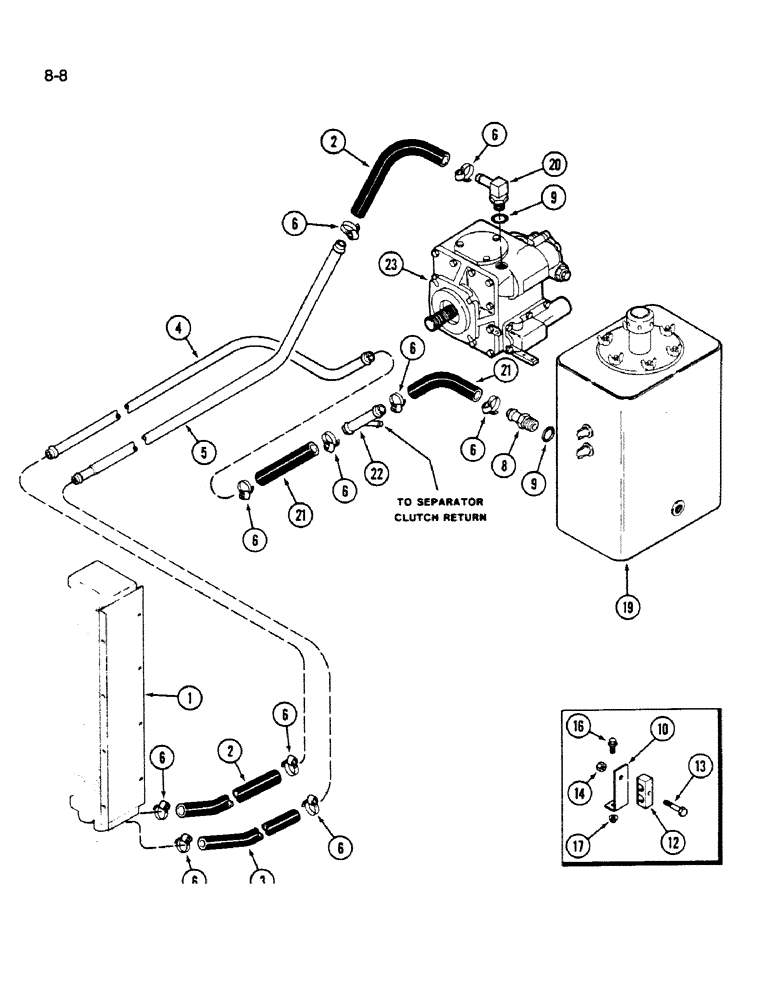

Запчасти Case IH 1620 (8-008) - OIL COOLER CIRCUIT (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil, see Figure 8-010

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - 1-3/4 inch ID oil, 18 inch (From bulk roll B90927)

2шт.

3

NSS

NOT SOLD SEPARAT

HOSE - 1-5/8 inch ID oil, 18 inch (From bulk roll S118576)

1шт.

4

187750C1

HYD TUBE,0.75" OD, mm Length

TUBE - reservoir to oil cooler

1шт.

5

183742C1

TUBE

- oil cooler to hydrostatic pump

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12 Type F

8шт.

8

470420R11

FITTING

CONNECTOR - system return

1шт.

9

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube, Class 6

2шт.

10

187833C1

SUPPORT

- oil cooler tubes

2шт.

12

121714C1

CLAMP

- oil cooler tubes

2шт.

13

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

14

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4 inch NC

2шт.

16

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

19

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, see Figure 8-002

1шт.

20

387006R91

ELBOW

- 90 degree, 3/4 tube 1-1/16-12 thread x 3/4 OD beaded tube

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - oil, 3/4 inch ID, 9 inch (From bulk roll B90927)

2шт.

22

196709C1

TEE

- 3-way beaded tube

1шт.

23

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, see Figure 6-018

1шт.
