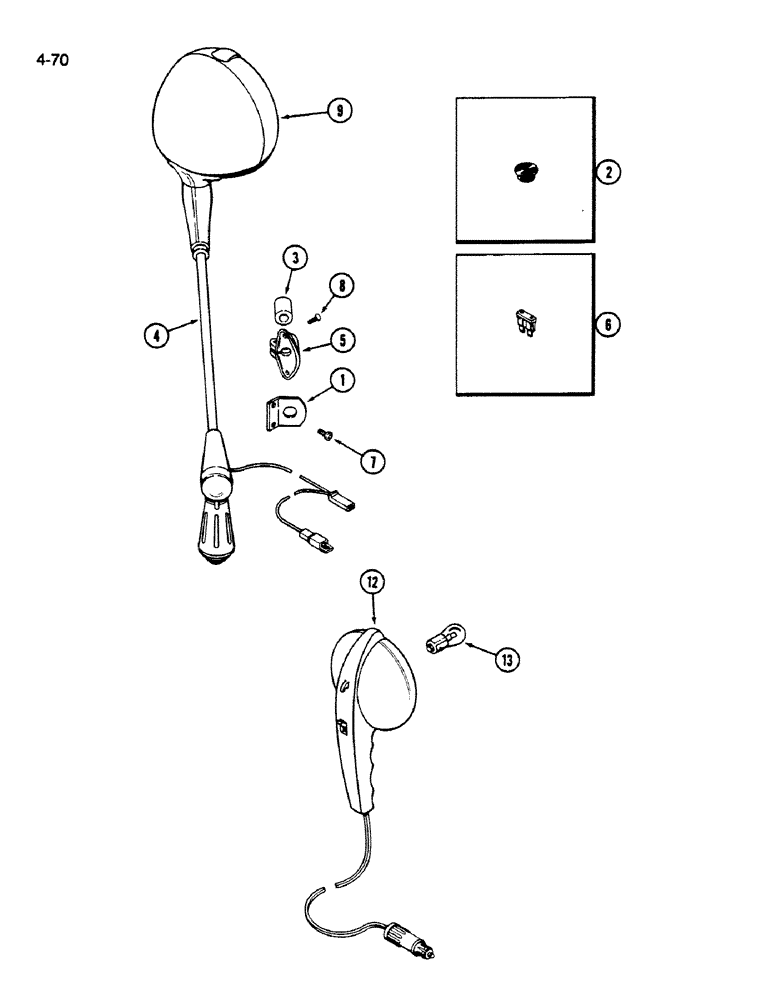

Запчасти Case IH 1620 (4-070) - CAB MOUNTED SPOTLIGHT, HAND HELD SPOTLIGHT (06) - ELECTRICAL

1

1329859C1

BRACKET

- spotlight

1шт.

2

1330144C1

GROMMET

- mounting

1шт.

3

1330145C1

BUSHING

- pivot

1шт.

4

91938C1

INTERIOR LIGHT

SPOTLIGHT ASSEMBLY - cab

1шт.

5

92015C1

BRACKET

- spotlight

1шт.

6

245044C1

FUSE

- 7-1/2 ampere

1шт.

6

A149798

FUSE

- 5 ampere

1шт.

7

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - tapping, No. 10 x 3/8 inch

2шт.

8

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - tapping, No. 10 x 1/2 inch

2шт.

9

28753R1

LIGHT

LAMP - seal beam, No. 7604

1шт.

12

1312876C1

LAMP

SPOTLIGHT ASSEMBLY - hand held, Includes: Ref. 13

1шт.

13

3131227R1

BULB,P25-1, 12V, 21W

Spotlight, Hand held P25-1, 12V, 21W

1шт.
