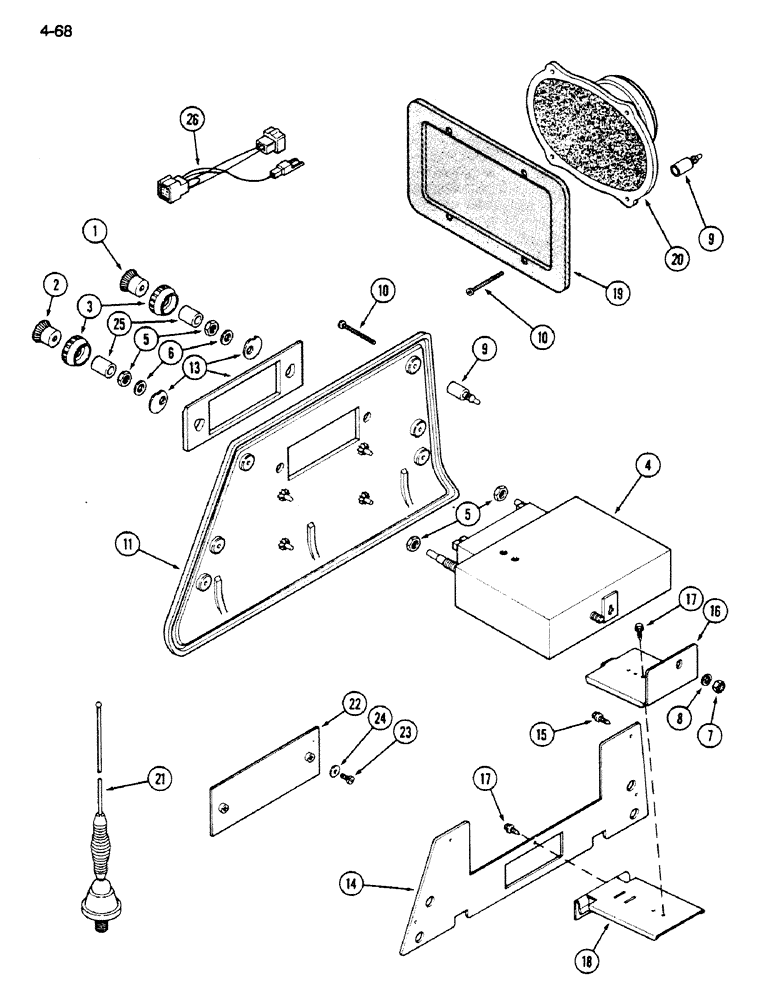

Запчасти Case IH 1620 (4-068) - RADIO (06) - ELECTRICAL

1

111381C1

KNOB

- volume control

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

2

111382C1

KNOB

- tuning

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

3

385532C1

KNOB

- tone and balance

2шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

4

245344C91

RADIO

- AM

1шт.

4

245160C91

RADIO

- AM-FM stereo

1шт.

4

84067C91

RADIO

- AM-FM stereo with casset tape player

1шт.

5

142921C1

NUT

- hex, 3/8 inch - 32

4шт.

6

142920C1

WASHER

- flat, 3/8 x 19/32 x 1/64 inch

2шт.

7

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

9

117995C1

PACKAGE

FASTENERS KIT - toggle type (Contains 5 fasteners)

3шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

10

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW - polyseal, No. 8-18 x 1-3/4 inch

14шт.

11

1280182C2

PANEL

- radio trim

1шт.

13

84103C1

PANEL

- radio trim highlight

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

14

91484C1

PLATE

- radio support

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

15

27667R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - tap, No. 10-16 x 5/8

4шт.

16

84048C1

BRACKET

- radio support rear slide

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

17

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"

2шт.

18

84049C1

BRACKET

- radio rear support

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

19

245806C1

PANEL

- speaker grille

2шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

20

245343C1

SPEAKER

- radio, 5 x 7, 4 ohm

2шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

21

111237C1

ANTENNA

ASSEMBLY

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

22

1321384C1

PANEL

- radio insert

1шт.

23

436746

SCREW

- machine, No. 10 NF x 1/4 inch

2шт.

24

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

25

84240C1

SPACER

- 3/8 x 5/8 inch x 19 mm

2шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

26

1964513C1

HARNESS

ASSEMBLY - adapter

1шт.

Part of Cab Radio Kit P/N 84226C91

1шт.

84226C91

KIT

RADIO KIT - cab, Includes: Ref. 1, 2, 3, 9, 13, 14, 16, 18, 19, 20, 21, 25 and 26, together with mounting hardware and instructions

1шт.
