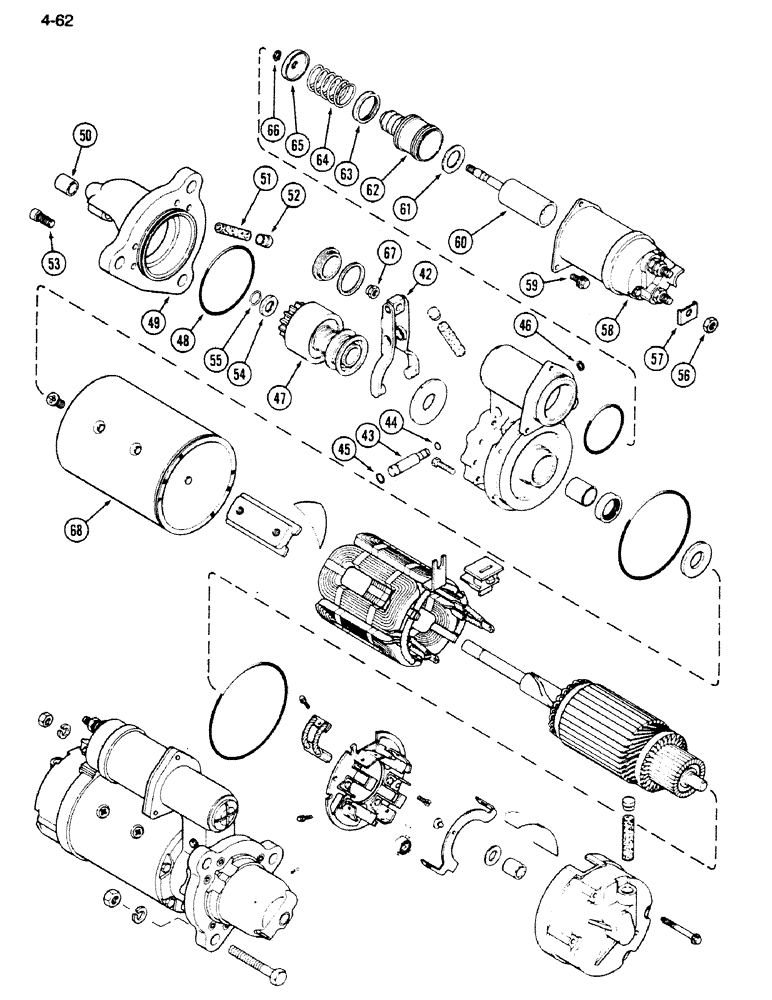

Запчасти Case IH 1620 (4-062[2]) - STARTER ASSEMBLY 1993891, DELCO REMY (CONTD) (06) - ELECTRICAL

REF

INSTRUCTION

STARTER ASSEMBLY - engine, Inc. Ref. 42 - 68 in this figure and parts in Figure 4-062(1)

1шт.

42

A49583

LEVER

ASSEMBLY - shift

1шт.

43

A187739

SHAFT

- shift lever

1шт.

44

A47259

O-RING,0.244" ID x 0.391" OD

- shift lever shaft, 3/8 inch (10 mm) OD

1шт.

45

A47258

O-RING,0.369" ID x 0.515" OD

- shift lever shaft, 1/2 inch (13 mm) OD

1шт.

46

A187732

RING

- retaining, shift lever shaft

1шт.

47

A49754

DRIVE

- motor

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

- housing

1шт.

49

1986351

HOUSING

- drive end, Includes: Ref. 50 - 52

1шт.

50

A40868

BUSHING

- housing

1шт.

51

A49567

WICK

- oil reservoir

1шт.

52

A49573

PLUG

CUP - oil reservoir

1шт.

53

10499637

SCREW

- drive housing

6шт.

54

A49585

STOP

- pinion

1шт.

55

A49586

CLIP,ELECTRICAL

RING - retaining

1шт.

56

10497770

BOLT,Torx Hd, 1/4" - 20

SCREW - Screw, connector to field terminal

1шт.

57

1987678

CLIP

- field coil, Serial Range: connect-switch

1шт.

58

1115628

SOLENOID

SWITCH - starter, Inc. Ref. 59 - 67

1шт.

59

10497770

BOLT,Torx Hd, 1/4" - 20

SCREW AND WASHER - solenoid mounting

3шт.

60

A49757

PLUNGER

- solenoid

1шт.

61

A41922

WASHER

- plunger assembly

1шт.

62

A49589

BOOT

- plunger

1шт.

63

A43380

BACK-UP RING

RETAINER - plunger spring

1шт.

64

A41242

SPRING

- plunger

1шт.

65

A43419

SEAT

RETAINER - plunger spring

1шт.

66

100-1137

SNAP RING,#37, Ext

Ring, Snap, , plunger assembly #37, Ext

1шт.

67

131-489

LOCK NUT,5/16"-24, G8

NUT - plunger rod guide adjusting

1шт.

68

NSS

NOT SOLD SEPARAT

HOUSING - field coil (Order 1993891)

1шт.

69

L128826

SHIELD

solenoid terminal, not shown

1шт.

70

10468109

CONNECTOR, ELEC

CONNECTOR field coil to switch, not shown

1шт.
