Запчасти Case IH 1620 (4-060[1]) - STARTER ASSEMBLY 1990321, DELCO REMY (06) - ELECTRICAL

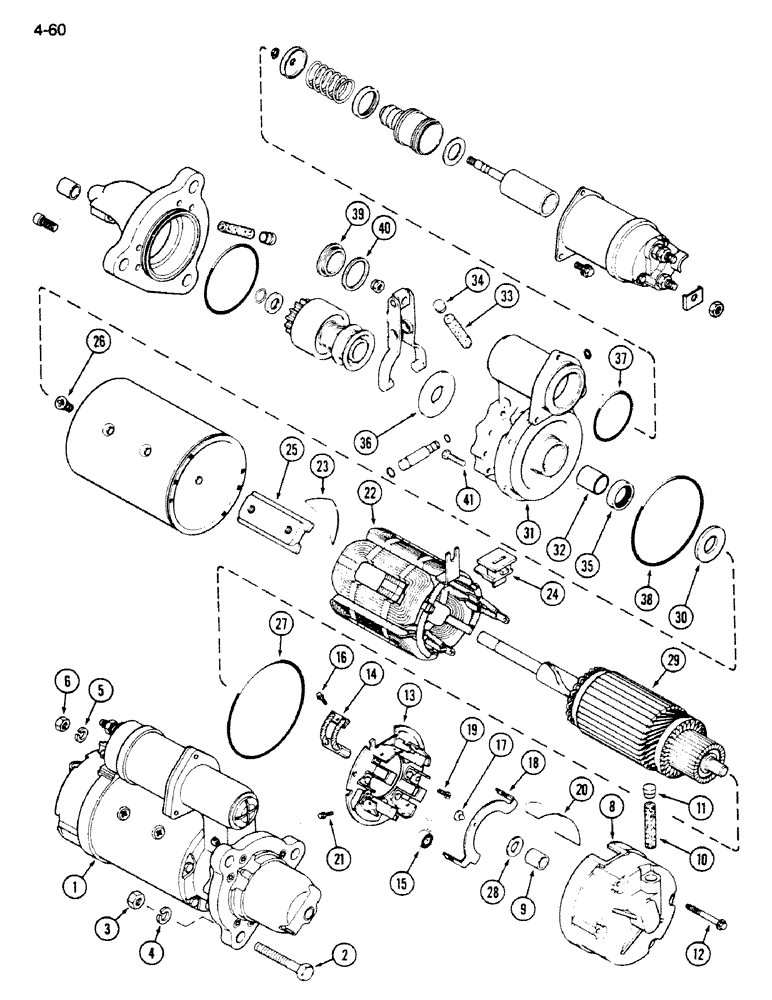

Схема запчастей Case IH 1620 - (4-060[1]) - STARTER ASSEMBLY 1990321, DELCO REMY (06) - ELECTRICAL
2
9
20
27
29
41
21
13
40
35
17
26
18
1
34
4
23
28
36
25
5
16
10
24
31
11
37
14
12
33
6
3
32
30
15
22
19
8
38
39

Артикул

Название

Примечание

Количество

1

1990321

STARTING MOTOR

STARTER ASSEMBLY, Engine, Inc. Ref. 8 - 41 in this figure and parts in Figure 4-060(2)

1шт.

No Longer Available, Order 1993891 Starter Assembly

1шт.

1

104211A1GV

STARTER MOTOR

Value

1шт.

1

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104211A1C

CORE-STARTER

Return Number

1шт.

1

87297380

REMAN-STARTER

Starter

1шт.

1

87297381

CORE-STARTER

Return Number

1шт.

2

25786R1

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 8

BOLT - hex, 3/8 NC x 3/4 inch

2шт.

2

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

BOLT - hex, 3/8 NC x 5-1/2 inch

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

6

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

8

1985315

FRAME

FRAME - commutator end, Includes: Ref. 9 - 11

1шт.

9

A40868

BUSHING

BUSHING - frame

1шт.

10

A49567

WICK

WICK - oil reservoir

1шт.

11

A49573

PLUG

CUP - oil reservoir

1шт.

12

1985333

SCREW

SCREW AND WASHER - commutator frame

4шт.

13

1985303

PLATE

BRUSH PLATE ASSEMBLY - starter, Includes: Ref. 14 - 18

1шт.

14

1852889

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

1шт.

15

A69575

SPRING - brush ( replaced A49515)

4шт.

16

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

SCREW - brush attaching

4шт.

17

A49561

INSULATOR

INSULATOR - conductor

1шт.

18

1985714

CABLE

CONDUCTOR - brush

1шт.

19

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

SCREW - brush plate

2шт.

20

1985248

INSULATOR

INSULATOR - brush plate

2шт.

21

A47894

SCREW,#8 - 32 x 5/16"

SCREW - field coil lead to brush holder

2шт.

22

1985324

COIL

FIELD COIL ASSEMBLY - 4 coils (For 1990321 only)

1шт.

23

1914873

INSULATOR

INSULATOR - field coil

2шт.

24

1985318

GROMMET

GROMMET - field coil

1шт.

25

A49579

PLATE

POLE SHOE - coil

4шт.

26

1968396

SCREW

SCREW - pole shoe

8шт.

27

1985320

RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING - frame

1шт.

28

1985617

WASHER

WASHER - thrust

1шт.

29

1985249

ARMATURE

ARMATURE - starter

1шт.

30

A49625

SPACER

SPACER - between armature and lever housing

1шт.

31

A49580

HOUSING

HOUSING ASSEMBLY - lever, Includes: Ref. 32 - 41

1шт.

32

A49581

BUSHING

BUSHING - housing

1шт.

33

A49567

WICK

WICK - oil reservoir

1шт.

34

A49573

PLUG

CUP - oil reservoir

1шт.

35

A49562

OIL SEAL

SEAL - oil

1шт.

36

1985235

WASHER

WASHER - brake

1шт.

37

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING - housing

1шт.

38

22411R1

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - housing

1шт.

39

R21587

PLUG

PLUG - inspection, lever housing

1шт.

40

1964857

GASKET

GASKET - inspection plug

1шт.

41

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing Hex, 1/4"-28 x 1", G5

5шт.
