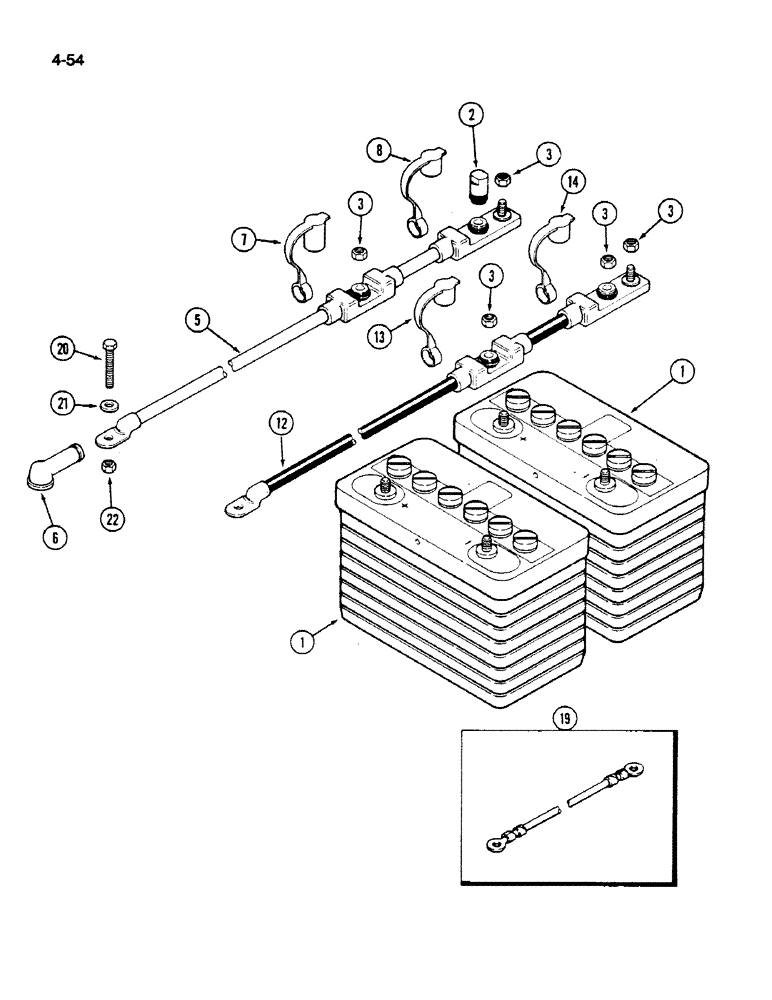

Запчасти Case IH 1620 (4-054) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL

1

BMF28S

BATTERY, DRY

BATTERY - dry charged, 12 volt

2шт.

2

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

3

476074C1

NUT

- pretailing torque lock hex, 3/8 inch NC

5шт.

5

245225C1

CABLE

ASSEMBLY - battery positive, Includes: Ref. 6 - 8

1шт.

For combines without feeder reverser attachment. For combines with reverser attachment, see Figure 4-044.

1шт.

6

364910R1

BOOT

- battery cable

1шт.

7

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

8

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

12

245226C1

CABLE

ASSEMBLY - battery ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

19

158477C91

CABLE

ASSEMBLY - engine to combine ground

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 2 inch

1шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
