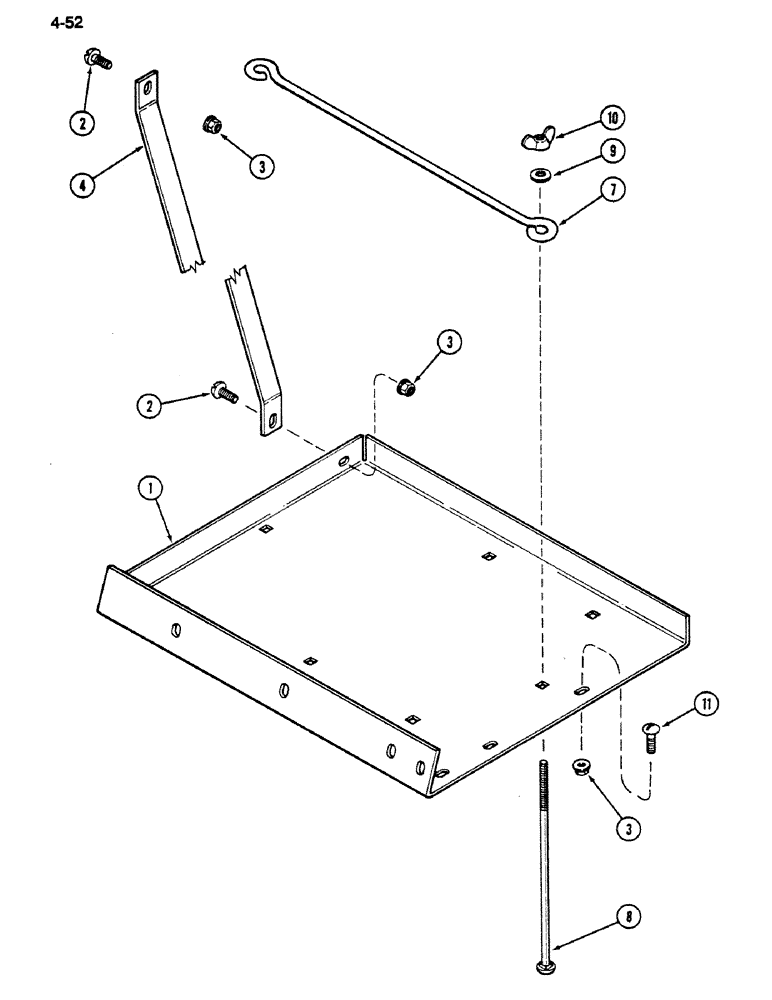

Запчасти Case IH 1620 (4-052) - BATTERY TRAY (06) - ELECTRICAL

1

186101C1

TRAY

- battery

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

4

183018C1

SUPPORT

- battery tray

1шт.

7

188116C1

CLAMP

- battery hold down

1шт.

8

21080R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT - round head square neck, 5/16 NC x 9-1/2 inch

2шт.

9

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

10

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

NUT - wing, 5/16 inch NC

2шт.

11

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.
