Запчасти Case IH 1620 (4-048) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

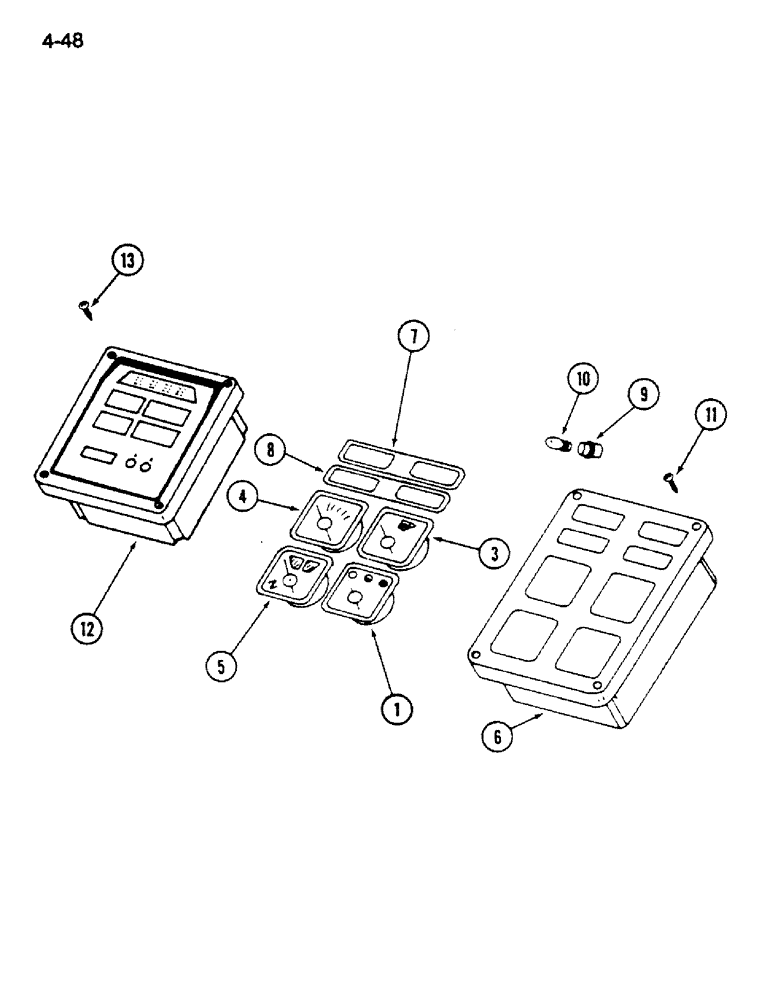

Схема запчастей Case IH 1620 - (4-048) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL
9
8
4
12
6
3
13
5
11
10
7
1

Артикул

Название

Примечание

Количество

198067C91

ELECTRICAL GAUGE

CLUSTER ASSEMBLY - instrument gauges, Includes: Ref. 1 - 10

1шт.

1

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

VOLMETER - cluster

1шт.

6

121608C1

GASKET

BEZEL AND GASKET ASSEMBLY - cluster

1шт.

7

187596C1

LENS

- warning light oil pressure, brake, temperature and amperes

1шт.

8

187597C1

LENS

- warning light shaker elevator

1шт.

9

121611C1

SOCKET

ASSEMBLY - instrument cluster

8шт.

10

W10478

LAMP

- Type C-2F, No. 194

8шт.

11

27204R1

SELF-TAP SCREW

- oval head cross slotted, No. 10-16 x 3/4 inch

4шт.

12

245249C1

TACHOMETER

- engine

1шт.

13

26233R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1/2"

SCREW - oval head cross slotted, No. 10-16 x 1/2 inch

4шт.

Выбрано товаров: 13
