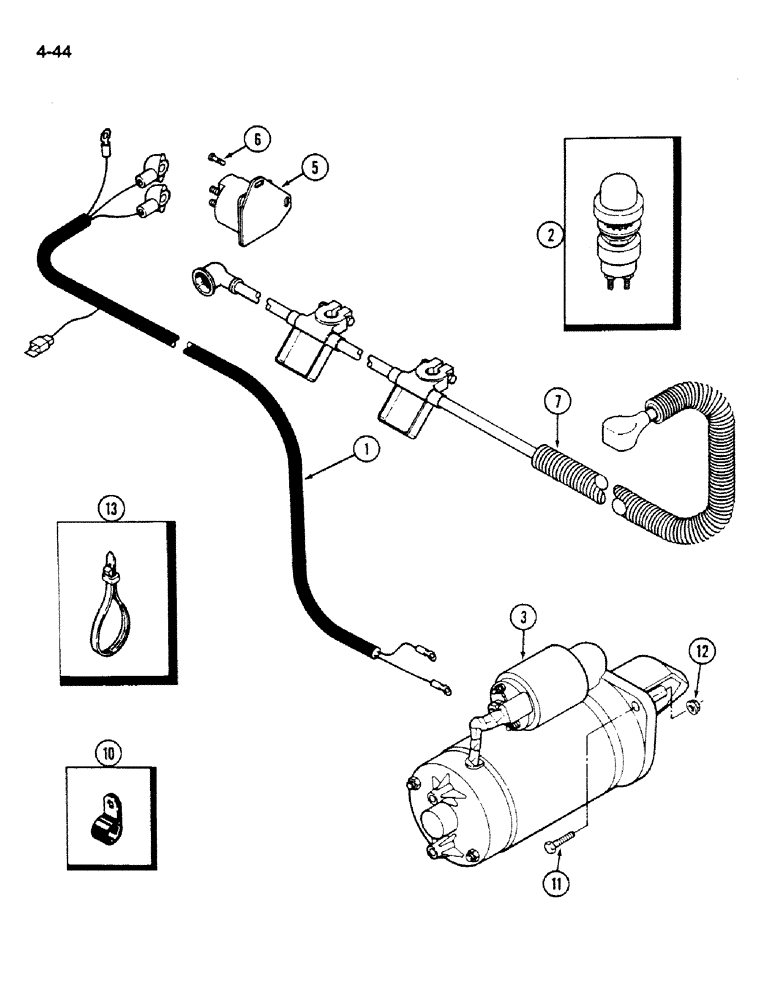

Запчасти Case IH 1620 (4-044) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

1

245957C1

HARNESS

ASSEMBLY - feeder reverser

1шт.

2

453453C1

SWITCH

- feeder reverser, push botton

1шт.

3

245927C91

STARTING MOTOR

MOTOR - feeder reverser, see Figure 4-046

1шт.

3

245927C93R

REMAN-STARTER

Reman for New PN 245927C91

1шт.

3

245927C93C

CORE-STARTER

Return Number

1шт.

5

121613C1

IGNITION SWITCH

SWITCH - magnetic relay

1шт.

6

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - tapping pan head cross, 1/4 x 1/2 inch

2шт.

7

245955C2

CABLE

- battery positive

1шт.

10

406381C1

CLIP

- rubber cushioned

10шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

3шт.

13

702093C1

CABLE TIE

STRAP - tie

1шт.
