Запчасти Case IH 1620 (4-038) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL

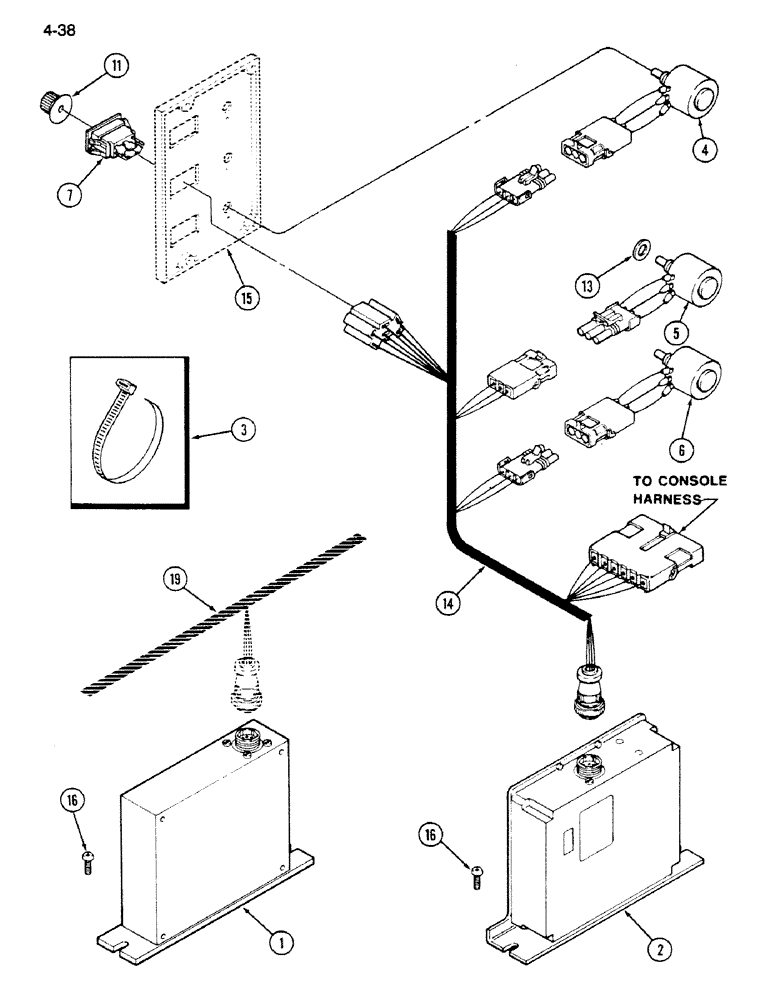

Схема запчастей Case IH 1620 - (4-038) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL
19
5
3
7
16
11
1
2
14
16
15
4
6
13

Артикул

Название

Примечание

Количество

1

1310805C1

CONTROL

ASSEMBLY - automatic feeder cut-off

1шт.

2

245631C1

CONTROL

ASSEMBLY - automatic reel speed to ground speed

1шт.

3

702093C1

CABLE TIE

STRAP - tie

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Reel to Ground Speed Ratio 2500 Ohm

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Speed Setting 1000 Ohm

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Calibration 200,000 Ohm

1шт.

7

245697C1

SWITCH

- automatic manual, rocker

1шт.

11

1301036C1

BUTTON

KNOB - reel to ground speed control

1шт.

13

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

14

245923C1

HARNESS

ASSEMBLY - reel to ground speed

1шт.

15

REF

INSTRUCTION

PANEL - front control (See Page 9-235)

1шт.

16

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - tapping pan head cross, 1/4 x 1/2 inch

4шт.

19

REF

INSTRUCTION

HARNESS - console, see Figures 4-006 and 4-008

1шт.

Выбрано товаров: 13
