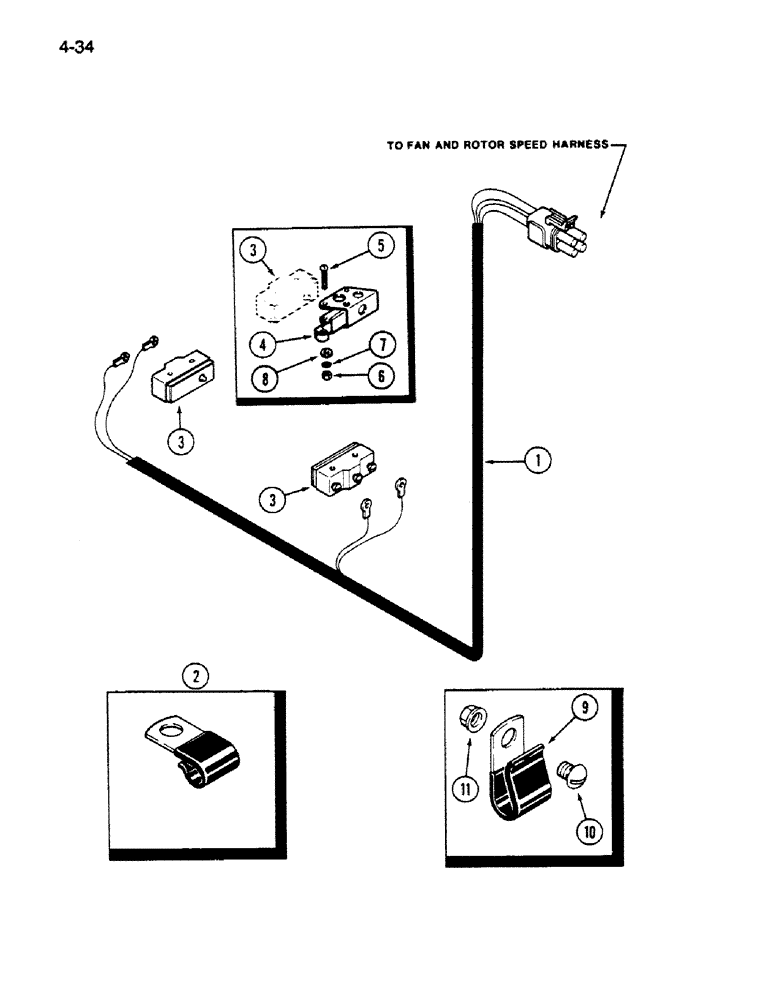

Запчасти Case IH 1620 (4-034) - ROTOR LIMIT SWITCH HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

HARNESS ASSEMBLY - rotor limit switch

1шт.

2

366460R1

CABLE CLIP

CLIP - harness

2шт.

3

186057C1

SWITCH

- rotor limit

2шт.

4

186058C1

IGNITION SWITCH

ACTUATOR - rotor limit switch

2шт.

5

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

- machine, No. 6 x 1-1/4 inch

4шт.

6

129-15

NUT,#6-32

4шт.

7

138526

LOCK WASHER

- internal lock, No. 6

4шт.

8

103337

WASHER,#6

4шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

1шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.
