Запчасти Case IH 1620 (4-032) - WARNING LIGHT - FRONT AND REAR, STOP AND TAIL LIGHT (06) - ELECTRICAL

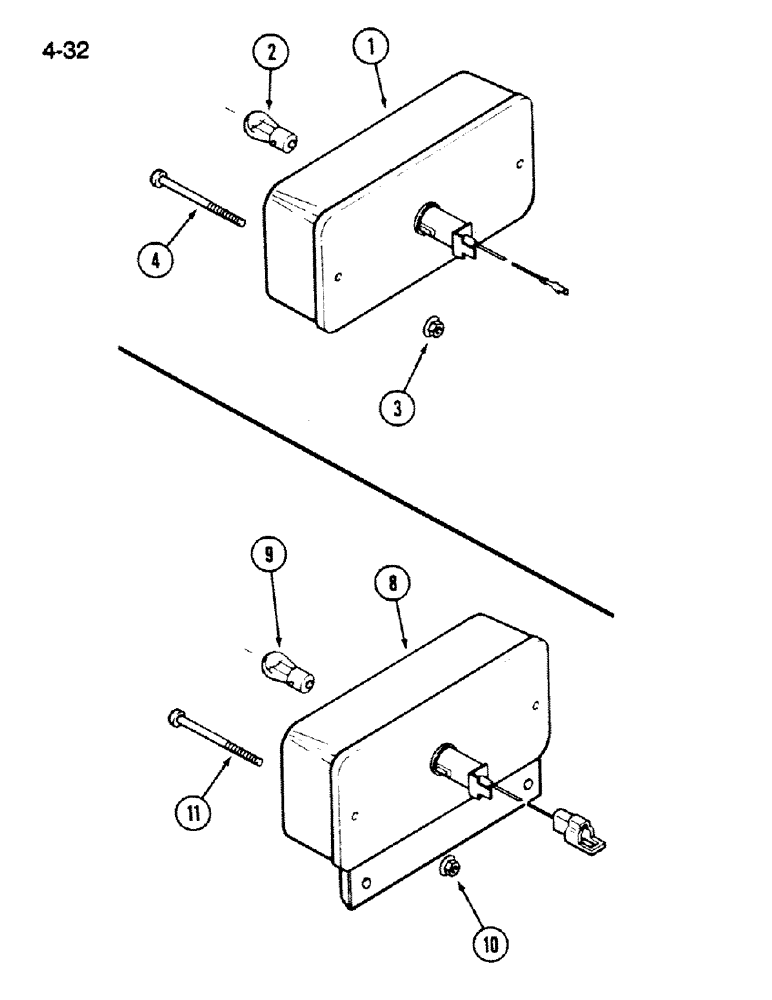

Схема запчастей Case IH 1620 - (4-032) - WARNING LIGHT - FRONT AND REAR, STOP AND TAIL LIGHT (06) - ELECTRICAL
10
11
4
2
9
1
8
3

Артикул

Название

Примечание

Количество

130882C91

LAMP

LIGHT ASSEMBLY - warning, Includes: Ref. 1 - 4

4шт.

1

130883C1

LENS

- amber

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

2шт.

4

26618R1

SCREW

- pan head machine, No. 10-24 NC x 1-1/2 inch

2шт.

216044C92

LAMP

LIGHT ASSEMBLY - stop and tail, Includes: Ref. 8 - 11

2шт.

8

216045C1

LENS

- red, stop and tail light

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail light

1шт.

10

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC, stop and tail light

2шт.

11

26618R1

SCREW

- pan head machine, No. 10-24 NC x 2-1/2 inch, stop and tail light

2шт.

Выбрано товаров: 10
