(4-030) - MAIN REAR HARNESS

Запчасти Case IH 1620 (4-030) - MAIN REAR HARNESS (06) - ELECTRICAL

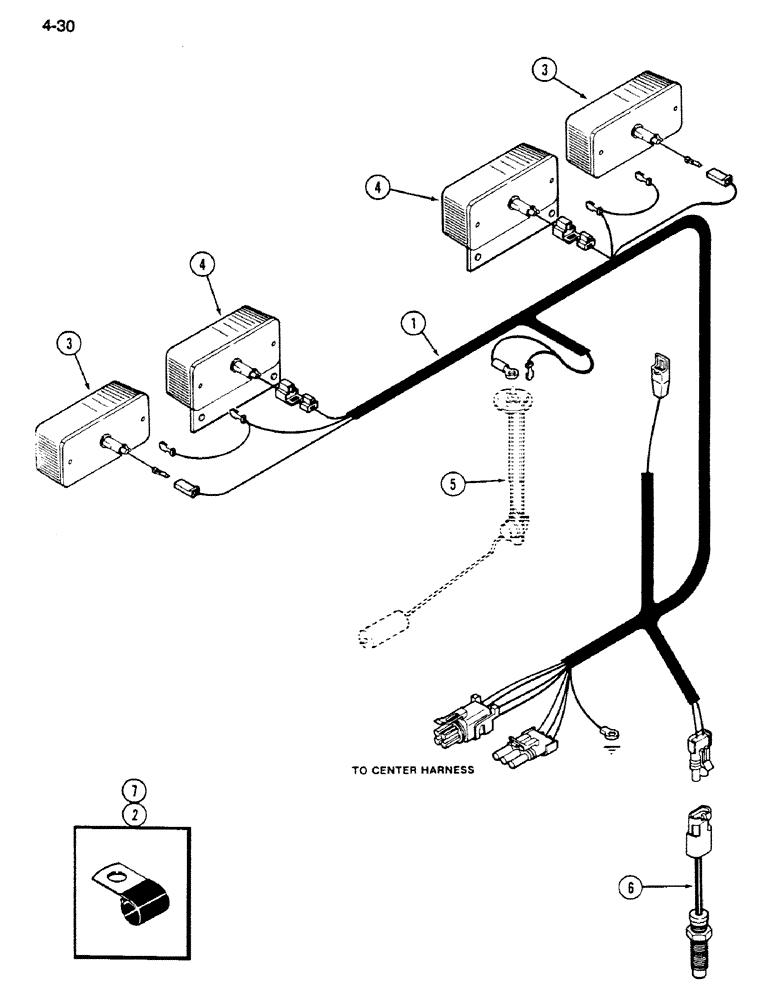

Схема запчастей Case IH 1620 - (4-030) - MAIN REAR HARNESS (06) - ELECTRICAL
1
3
6
4
3
2
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245228C2

HARNESS

ASSEMBLY - rear lights and fuel sender

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness, 1-3/8 inch long

1шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning rear, see Figure 4-032

2шт.

4

216044C92

LAMP

ASSEMBLY - tail, see Figure 4-032

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit, see Figure 3-012

1шт.

6

1252494C2

TRANSMITTER

SENSOR - transducer, engine RPM

1шт.

7

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness, 1-1/2 inch long

13шт.
