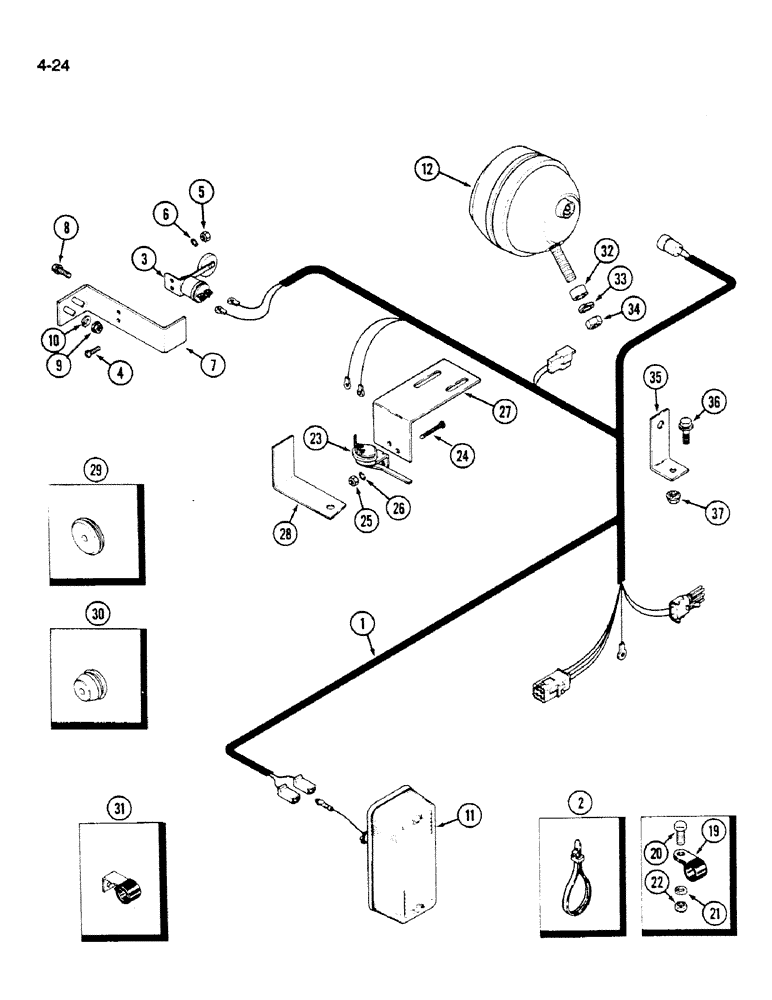

Запчасти Case IH 1620 (4-024) - GRAIN TANK HARNESS (06) - ELECTRICAL

1

245243C1

HARNESS

ASSEMBLY - grain tank

1шт.

2

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

3

91436C3

SWITCH

- unloader in

1шт.

4

26667R1

SCREW

- pan head machine, No. 10 x 3/4 inch

2шт.

5

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

6

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER - internal-external lock, No. 10

2шт.

7

1338022C1

SUPPORT

BRACKET - unloader in switch

1шт.

8

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flanged hex lock, 1/4 NC x 3/4 inch

2шт.

9

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4 inch NC

2шт.

10

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

130882C91

LAMP

LAMP ASSEMBLY - warning, right front, see Figure 4-032

1шт.

12

245953C91

LAMP

ASSEMBLY - grain tank, see Figure 4-028

1шт.

19

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness

12шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

22

9635082

NUT,5/16" - 18, Gr 5

12шт.

23

537641R2

SWITCH ASSY

SWITCH - unloader out

1шт.

24

159967

SCREW,Cross Pan Hd, #10 - 24 x 1 1/2"

- pan head machine, No. 10 NF x 1-1/2 inch

2шт.

25

115999

NUT,#10-32

- hex machine, No. 10 NF

2шт.

26

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER - internal-external lock, No. 10

2шт.

27

1338003C1

BRACKET

SUPPORT - unloader limit switch out

1шт.

28

1338005C1

BAR

- unloader limit switch out

1шт.

29

1321767C1

GROMMET

- grain bin, 3/8 x 1-1/2 x 3/8 inch

1шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- grain bin, 3/8 x 1-5/8 x 1-1/16 inch

1шт.

31

370383R1

CLIP

- harness

6шт.

32

1267358C2

SEAT

BUSHING - seat, lamp

1шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

34

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

35

1317942C1

BRACKET

- mounting, lamp

1шт.

36

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - lock, 3/8 NC x 1 inch

1шт.

37

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.
