(4-016) - MONITOR HARNESS, WITHOUT SHAFT SPEED MONITOR SYSTEM

Запчасти Case IH 1620 (4-016) - MONITOR HARNESS, WITHOUT SHAFT SPEED MONITOR SYSTEM (06) - ELECTRICAL

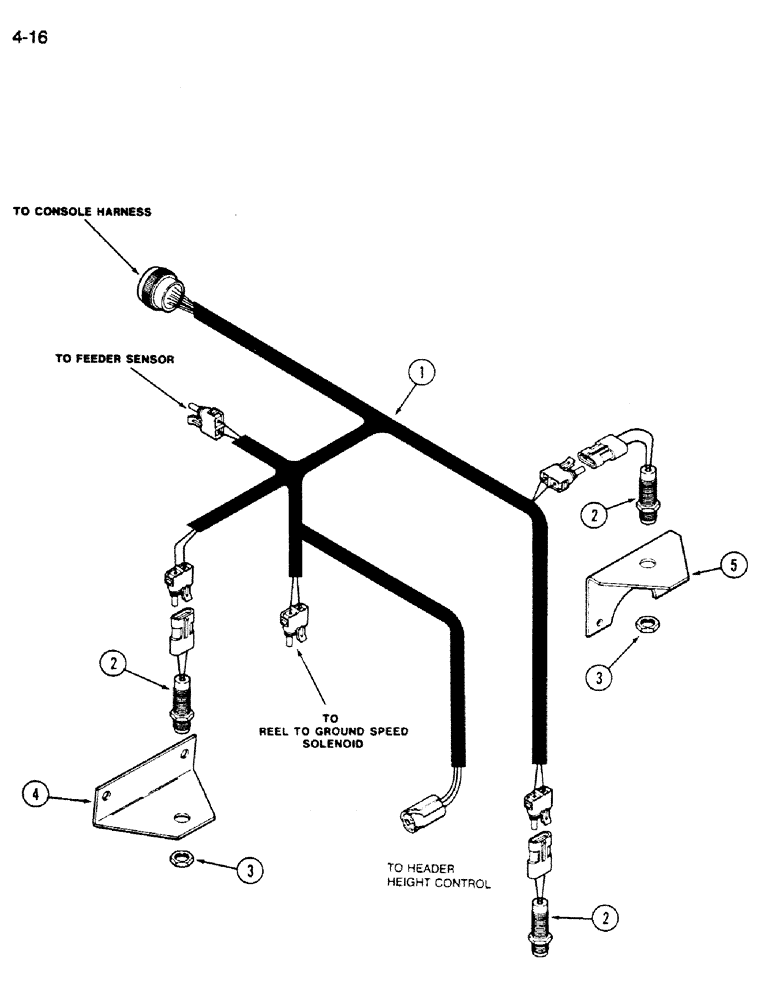

Схема запчастей Case IH 1620 - (4-016) - MONITOR HARNESS, WITHOUT SHAFT SPEED MONITOR SYSTEM (06) - ELECTRICAL
2
3
1
2
4
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245942C1

HARNESS

ASSEMBLY - monitor

1шт.

2

245193C2

SENSOR

TRANSMITTER - transducer (MPH, rotor and fan RPM)

3шт.

3

84116C1

NUT

- lock (Rotor and fan transmitter)

2шт.

4

1301239C1

BRACKET

- rotor transmitter

1шт.

5

1301240C2

SUPPORT

- fan transmitter

1шт.

Выбрано товаров: 5
