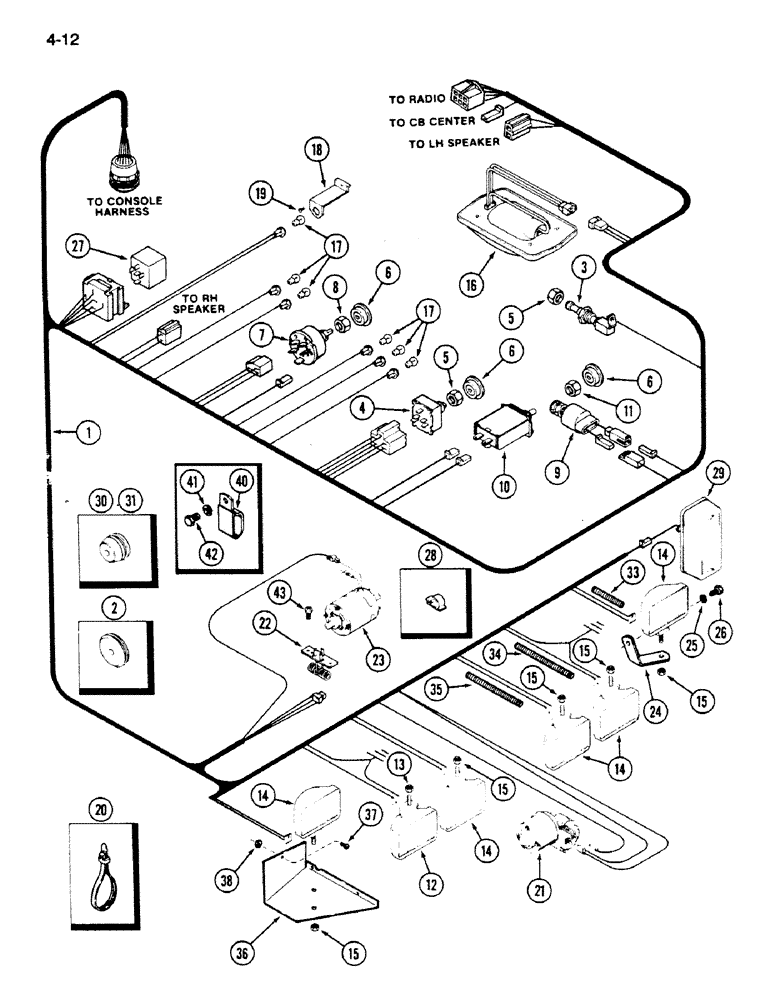

Запчасти Case IH 1620 (4-012) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C3

HARNESS

ASSEMBLY - cab roof

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome light control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam

2шт.

12

91666C91

INTERIOR LIGHT

LAMP ASSEMBLY - headlight (40 x 7 Halogen flood)

1шт.

13

118617

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

1шт.

14

245897C91

LAMP, WORK

LIGHT ASSEMBLY - work light and outer flood light (80 x 30 Halogen flood)

5шт.

15

118617

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

5шт.

16

245659C91

LAMP

LIGHT ASSEMBLY - dome, see Figure 4-064

1шт.

17

A14553

BULB

LAMP - cab instrument panel backlight and warning light, Type C-2V, No. 57

6шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

5шт.

20

111619C1

STRAP

- cable retaining

6шт.

21

1276130C91

MOTOR, ELECTRIC

WIPER ASSEMBLY, see Figure 4-066

1шт.

22

1255876C1

RESISTOR

ASSEMBLY - blower

1шт.

23

142990C2

MOTOR, ELECTRIC

MOTOR - blower, 12 volt, DC, PM

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1620, Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

ANGLE - light support left

1шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

26

24859R1

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

1шт.

27

1-7877

RELAY

- air conditioning

1шт.

28

169850C1

CLIP

- harness (plastic)

6шт.

29

130882C91

LAMP

LAMP ASSEMBLY - warning, see Figure 4-032

1шт.

30

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- deck harness, right

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, left

1шт.

33

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 3-1/2 inch (Order 92083C1 and, Serial Range: cut-length)

2шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch (Order 92083C1 and, Serial Range: cut-length)

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch (Order 92083C1 and, Serial Range: cut-length)

2шт.

36

1283449C3

BRACKET

ANGLE - combination light shield and mounting bracket right

1шт.

37

436746

SCREW

- pan head, No. 10 NF x 1/4 inch

2шт.

38

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

40

371036R1

CLIP

- covered, rubber

1шт.

41

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

43

187-1714

SELF-TAP SCREW,Slotted Pan Hd, #6 x 3/8"

SCREW - oval cross slotted, No. 6 x 3/8 inch

2шт.
