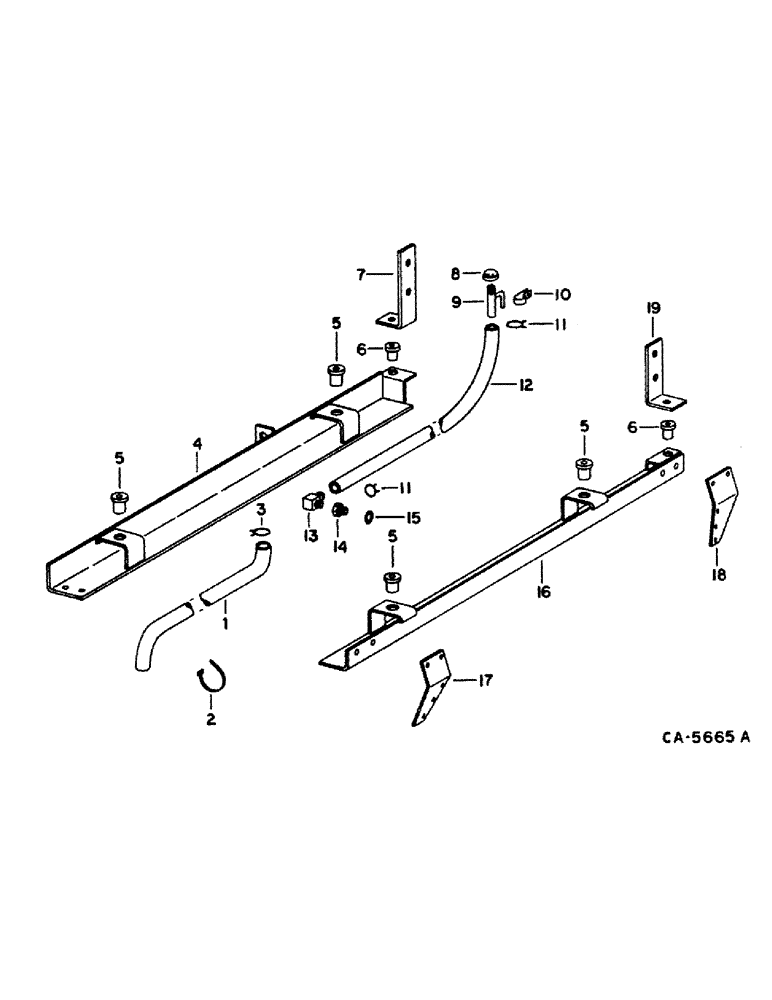

Запчасти Case IH 1480 (12-09) - POWER, ENGINE RAILS, SERIAL NO. 1500 AND BELOW Power

1

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

crankcase breather, 46 in., 1168.4mm

1шт.

2

306132C1

CABLE TIE,14.5" L

STRAP, hose lock

2шт.

3

610320C1

CLAMP

hose

1шт.

4

182962C1

RAIL

ASSY, engine left

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

5

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, engine front and rear

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8-11 CAD hex. lock

1шт.

107813R1

WASHER

21/32 x 2-1/2 x 3/16 C-Z

1шт.

6

400159R1

BUMPER

ABSORBER

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2 crg type 1

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 CAD hex. lock

1шт.

23043R1

WASHER

.469 x 2.000 x .105

1шт.

7

191365C1

SUPPORT

engine front

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 type 1

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

8

221-1524

CAP,3/8" NPT

3/8 mall iron

1шт.

9

165203C91

FITTING

ASSY, crankcase drain

1шт.

10

587501R2

CLAMP

oil drain hose

1шт.

11

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

12

HOSE, crankcase oil drain, use 62 in. of 5/8 ID hose from 50 ft roll marked S118576

1шт.

13

864456R1

NIPPLE, LUBE

NIPPLE, oil drain hose

1шт.

14

165419C1

PLUG

oil pan drain

1шт.

15

3405H

GASKET

oil drain plug

1шт.

16

182964C1

RAIL

ASSY, engine right

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

17

191034C2

BRACKET

SUPPORT, engine rail LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

18

191035C2

BRACKET

SUPPORT, engine rail RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

19

191364C1

SUPPORT

BAR, front right

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 type 1

1шт.
