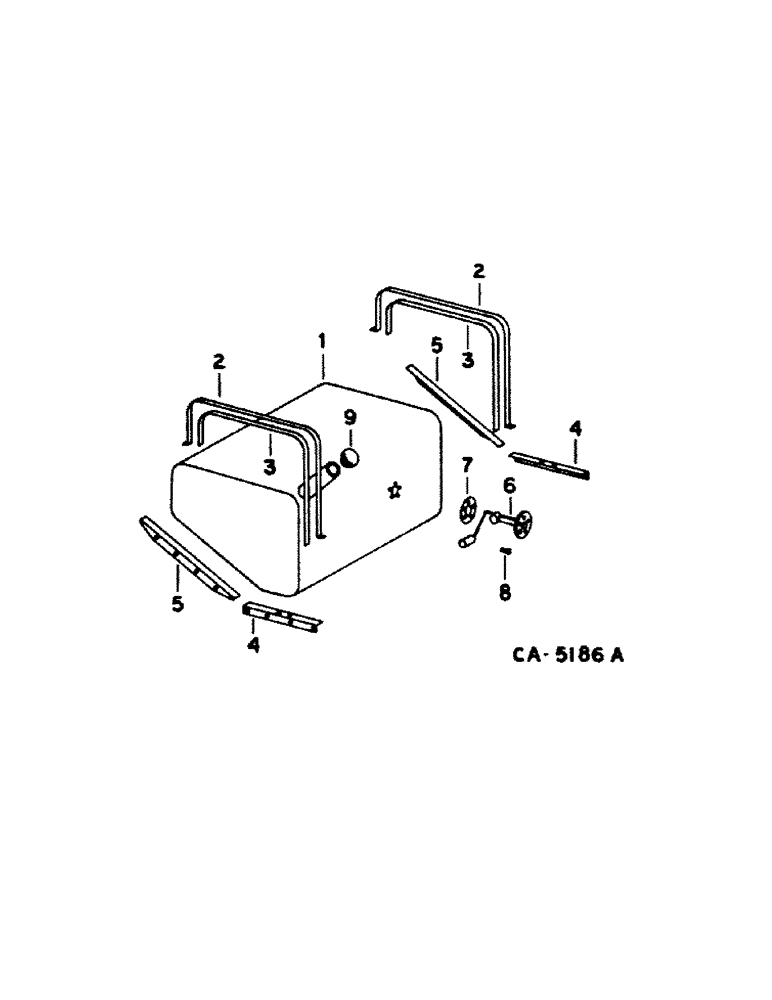

Запчасти Case IH 1480 (12-06) - POWER, FUEL TANK, SERIAL NO. 1500 AND BELOW Power

1

193551C92

TANK

ASSY, fuel

1шт.

2

193255C1

BRACKET

STRAP, fuel tank support

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

3

LINING, fuel tank support, use 14 in. of 1-1/4 inl. width 3 ply cotton webbing from 50 ft. roll marked 990539R1

1шт.

4

192381C3

SUPPORT

ANGLE, fuel tank bottom support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

5

192382C2

ANGLE

ruel tank foreward support, Serial Range: -1500

2шт.

5

183339C1

ANGLE

fuel tank forward, Start Serial: 1501

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss, hd

1шт.

6

198024C1

FUEL GAUGE

GAGE ASSY, fuel tank

1шт.

7

168515C1

GASKET,3.05mm Thk

fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

538063R1

PLUG

CAP, filler

1шт.
