(12-05[1]) - MUFFLER FOR FACTORY INSTALLED ASPIRATOR ATTACHMENT

Запчасти Case IH 1480 (12-05[1]) - MUFFLER FOR FACTORY INSTALLED ASPIRATOR ATTACHMENT Power

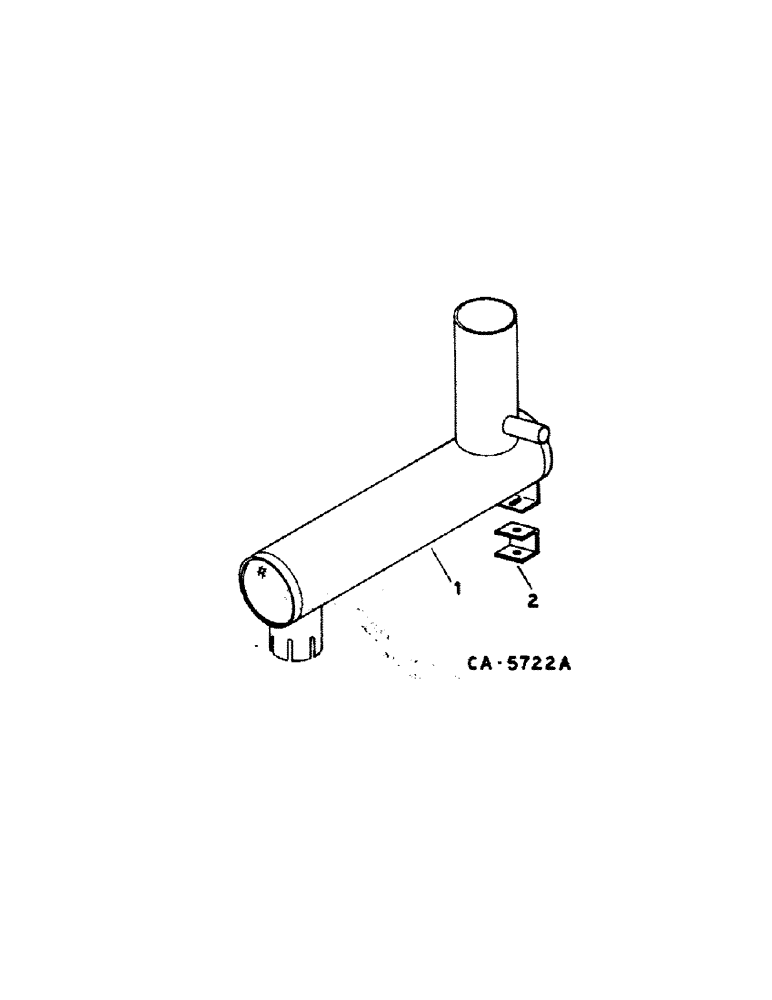

Схема запчастей Case IH 1480 - (12-05[1]) - MUFFLER FOR FACTORY INSTALLED ASPIRATOR ATTACHMENT Power
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

131086C91

MUFFLER

package

1шт.

2

BRACKET, spacer, not serviced separately, order muffler, 131086C91

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

Выбрано товаров: 6
