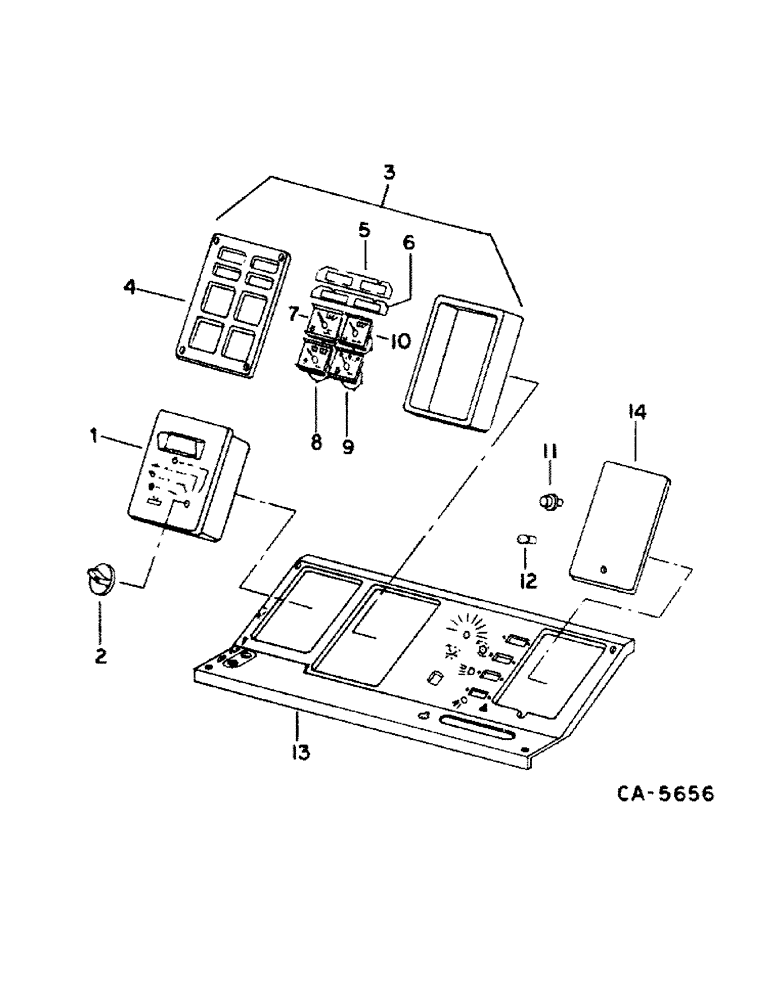

Запчасти Case IH 1480 (11-01) - INSTRUMENTS, INSTRUMENTS AND GAUGES, SERIAL NO. 24000 AND BELOW Instruments

1

245256C91

TACHOMETER

SYSTEM, multi-position, replaces R187512C91

1шт.

2

196980C1

KNOB

multi-position tachometer

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

192208

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW, no. 8 x 3/16 C/PT znp hdl/s

1шт.

3

198067C91

ELECTRICAL GAUGE

GAGE ASSY, cluster, includes ref. nos. 4 thru 12

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

4

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

5

187596C1

LENS

warning lights, oil press., brake, temp and amps

1шт.

6

187597C1

LENS

warning lights, shaker drive and elevator drive

1шт.

7

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

8

121607C1

METER

VOLTMETER

1шт.

9

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

10

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

11

121611C1

SOCKET

ASSY, lamp

8шт.

12

W10478

LAMP

BULB, no. 194

8шт.

13

192978C1

COVER

instrument panel

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

14

187573C1

COVER

fuse panel

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.
