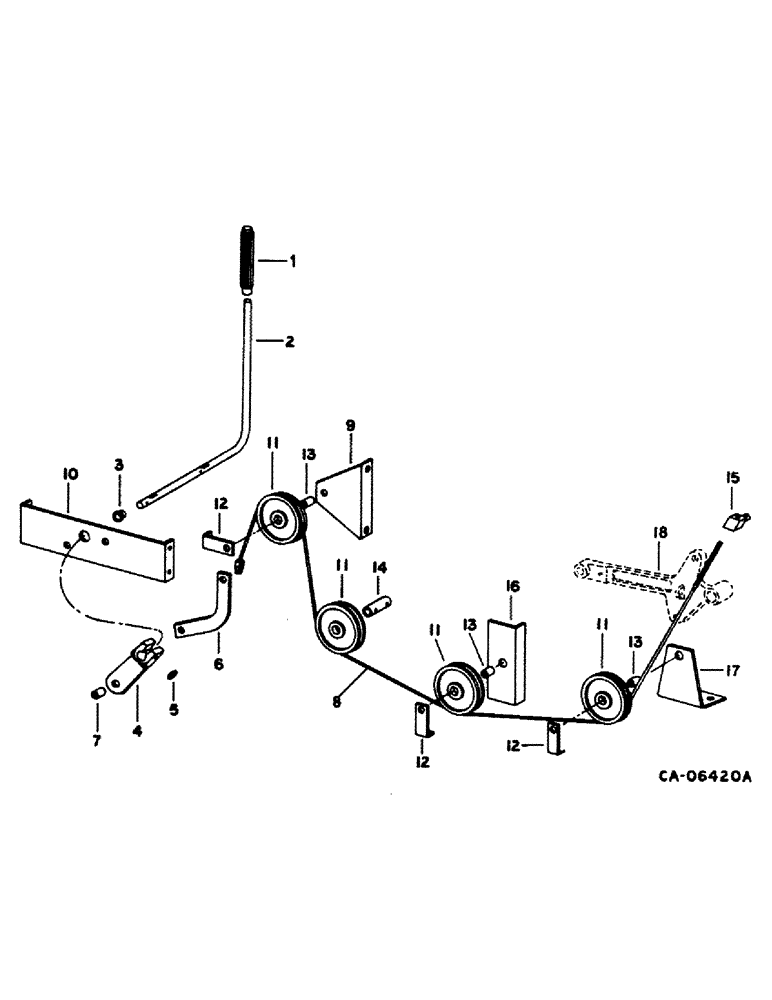

Запчасти Case IH 1480 (26-19) - GRAIN TANK, GRAIN TANK UNLOADER CONTROL, SERIAL NO. 24001 AND ABOVE Grain Tank

1

193194C2

HANDLE

GRIP, unloader control lever

1шт.

2

193196C1

ROD

unloader control

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

3

193201C1

BUSHING

unloader

2шт.

4

161650C2

ARM

control

1шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

5

18465D

WASHER

control arm

1шт.

6

195549C1

LINK

control

1шт.

7

561277R1

SPACER,5/8" Tube x 1/2"

.407 ID x .625 x .438

1шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

195550C1

CABLE

unloader control

1шт.

120368

NUT,5/16"-24, G5

1шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN, 5/16 x .719 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

9

195551C1

SUPPORT

pulley

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

195050C2

CHANNEL

control lever right support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

11

193208C1

PULLEY

unloader control cable, 2.5 in. OD, 63.5mm OD

4шт.

12

193209C1

CLIP

unloader control cable pulley

3шт.

13

159716C1

SPACER,3/4" Tube x 5/8"

.532 ID x .75 OD x .562

3шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

14

195553C1

PIN

cable pulley

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

194893C1

PIVOT

unloader control cable rear

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

16

193207C1

ANGLE

cable guide

1шт.

17

193795C1

SUPPORT

rear pulley

1шт.

18

ARM ASSY, unloader belt tightener, refer to this group under grain tank unloader drive, belt drive

1шт.
