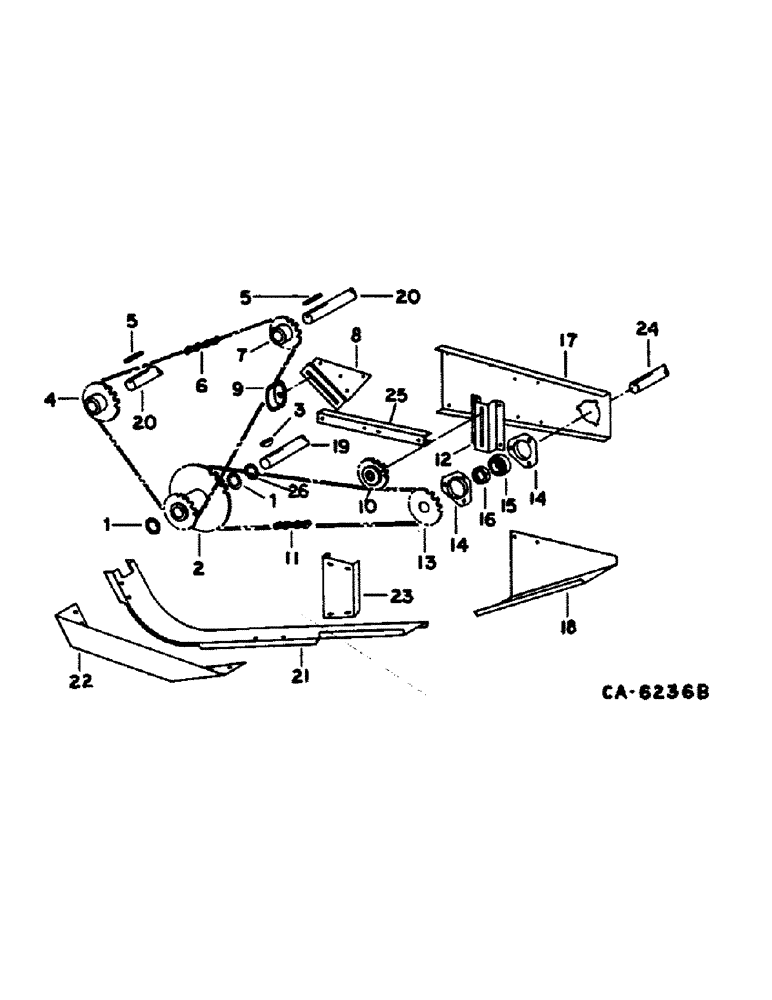

Запчасти Case IH 1480 (26-16) - GRAIN TANK, GRAIN TANK UNLOADER, CHAIN DRIVE Grain Tank

1

162679C1

WASHER

WASHER, 1.40 x 2.25 x .06 hardened

4шт.

2

192511C2

SPROCKET ASSY.

SPROCKET ASSY, unloader drive, 43T and 57T

1шт.

21652R1

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

3

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

4

192922C1

SPROCKET

ASSY, front auger driven, 43T

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1/031 x 1.500 x .054

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

5

Q53

KEY,1/4" Sq x 1", Par

2шт.

6

CHAIN ASSY, grain tank auger drive, use 157 links from a 10 ft roll marked 1790D, and 2 offset links 1301D

1шт.

7

192925C1

SPROCKET

ASSY, rear auger driven, 37T

1шт.

8

193779C1

SUPPORT

idler support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 slt-truss-hd

1шт.

9

936878R1

BLOCK

front auger drive tightener

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

565442R91

SPROCKET

vertical auger chain tightener, 17 T

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 x 1.250 x .105 sq/h

1шт.

11

CHAIN ASSY, vertical auger drive, use 133 links from a 10 ft roll marked 1791D and 1 connecting link 1310D

1шт.

12

192901C1

SUPPORT

vertical auger drive

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

192199C2

SPROCKET ASSY.

SPROCKET ASSY, rear auger drive, 33T

1шт.

14

571425R1

FLANGED BEARING

unloader jackshaft bearing

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

15

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

unloader jackshaft

2шт.

16

557115R11

COLLAR

COLLAR, w/set screw, jackshaft bearing locking

2шт.

17

192899C2

SUPPORT

jackshaft outer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

18

186113C1

SUPPORT ASSY.

SUPPORT, unloader drive chain, Serial Range: -1500

1шт.

19

SHAFT, horizontal auger gear case, refer to this group under grain tank unloader lower drive

1шт.

20

AUGER ASSY, grain tank bottom, refer to this group under grain tank bottom auger

2шт.

21

1302434C1

SHIELD

unloader drive, Start Serial: 1501

1шт.

22

183351C1

PLATE

unloader shield side, Start Serial: 1501

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

183352C1

SUPPORT

unloader shield, Serial Range: 1501-14000

1шт.

23

1302435C1

SUPPORT

unloader shield, Start Serial: 14001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24

SHAFT, vertical auger, refer to this group under grain tank unloader belt drive

1шт.

25

1319469C1

CHANNEL

unloader jackshaft support

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

26

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.40 x 2.25 x .12 hardened

1шт.
